Factory Lead Time

12 Weeks

Mount

Cable, Free Hanging

Mounting Type

Free Hanging (In-Line)

Shell Material

Aluminum

Insert Material

Neoprene

Body Material

Aluminium

Backshell Material, Plating

Aluminum, Olive Drab Cadmium

Contact Finish Mating

Gold

Contact Materials

Copper Alloy

Voltage Rated

1kV

Operating Temperature

-55°C~125°C

Packaging

Bulk

Series

MIL-DTL-26482 Series I, PT

Published

2004

Pbfree Code

no

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder Cup

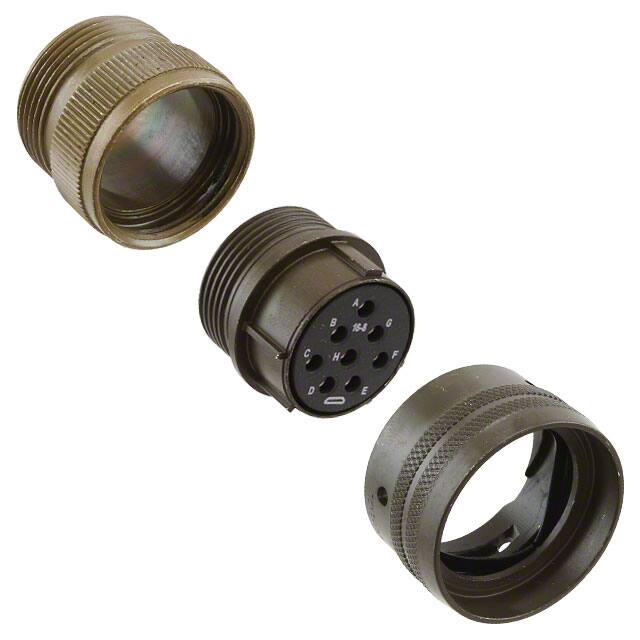

Connector Type

Plug, Female Sockets

Number of Positions

8

Color

Olive Drab

Applications

Aerospace, Industrial, Instrumentation, Mass Transit, Military

Fastening Type

Bayonet Lock

MIL Conformance

YES

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Mixed Contacts

NO

Option

GENERAL PURPOSE

Total Number of Contacts

8

Orientation

N (Normal)

Shielding

Unshielded

Current Rating

13A

Military Standard

MIL-DTL-26482

Shell Finish

Olive Drab Chromate over Cadmium

Shell Size - Insert

16-8

Voltage - Rated AC

1kV

Approval Agency

UL

Contact Gender

Female

Empty Shell

NO

Backshell Type

SOLID

Contact Style

Socket

Environmental Characteristics

CORROSION/ENVIRONMENT/MOISTURE RESISTANT

Plating

Cadmium, Chromate

Wire Gauge (Max)

20 AWG

Wire Gauge (Min)

16 AWG

Body Plating

Cadmium

Features

Backshell, Coupling Nut

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

Non-RoHS Compliant
