PT06E-8-3S - Amphenol Industrial Operations

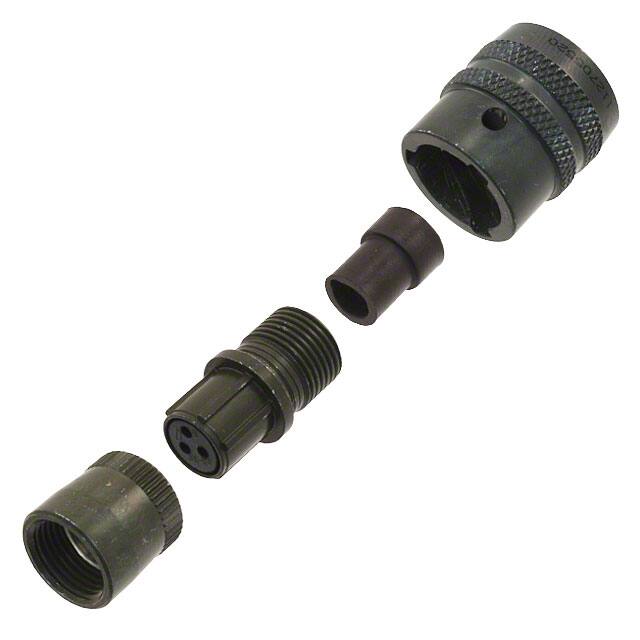

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY10-PT06E-8-3S

Hersteller Teil #: PT06E-8-3S

Produktkategorie: Circular Connectors

Hersteller: Amphenol Industrial Operations

Beschreibung: CONN PLUG FMALE 3POS SOLDER CUP

Verpackung: Metal

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

PT06E-8-3S Datenblatt

Attribute

Attribute Value

Factory Lead Time

12 Weeks

Mounting Type

Cable, Free Hanging

Package / Case

Metal

Shell Material

Aluminum

Insert Material

Neoprene

Body Material

Aluminium

Backshell Material, Plating

Aluminum, Olive Drab Cadmium

Contact Finish Mating

Gold

Contact Materials

Copper Alloy

Operating Temperature

-55°C~125°C

Packaging

Bulk

Series

MIL-DTL-26482 Series I, PT

Published

2006

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder Cup

Connector Type

Plug, Female Sockets

Number of Positions

Color

Olive Drab

Applications

Aerospace, Industrial, Instrumentation, Mass Transit, Military

Gender

Female

Additional Feature

STANDARD: MIL-C-26482, POLARIZATION AVAILABLE

Fastening Type

Bayonet Lock

DIN Conformance

IEC Conformance

Filter Feature

Mixed Contacts

Option

GENERAL PURPOSE

Current Rating (Amps)

7.5A

Orientation

N (Normal)

Shielding

Unshielded

Ingress Protection

Environment Sealed

Military Standard

YES

Shell Finish

Olive Drab Chromate over Cadmium

Shell Size - Insert

8-3

Voltage - Rated AC

600V

Approval Agency

Number of Contacts

Empty Shell

Backshell Type

SOLID

Contact Style

Socket

Environmental Characteristics

CORROSION/ENVIRONMENT/MOISTURE RESISTANT

Body Plating

Cadmium

Features

Backshell, Coupling Nut

Length

32.15mm

REACH SVHC

No SVHC

Radiation Hardening

RoHS Status

Non-RoHS Compliant

Ratings

Environment Resistant

Teilenummer	Paket	Beschreibung
PT06E-8-3S	Metal	CONN PLUG FMALE 3POS SOLDER CUP
PT06A-8-3S	Metal	CONN PLUG FMALE 3POS SOLDER CUP
PT06P-8-3S		AMPHENOL PT06P8-3S Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 3, Solder Socket
PT05A-8-3S		AMPHENOL PT05A8-3S Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 3, Solder Socket
PT06A-8-33S		Conn Miniature Cylindrical SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port
