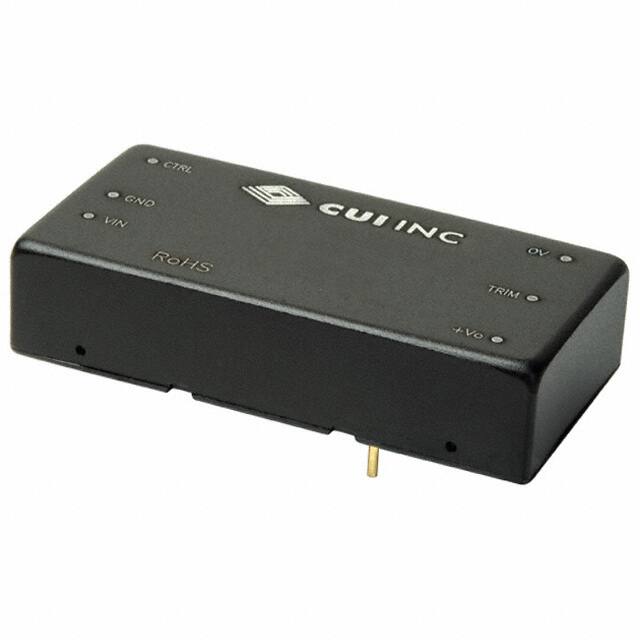

Factory Lead Time

13 Weeks

Mounting Type

Through Hole

Package / Case

6-DIP Module

Weight

28.349523g

Voltage - Input (Nom)

48V

Power Dissipation (Max)

15W

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

PYB15 (15W)

Published

2016

Size / Dimension

2.00Lx1.00W x 0.47 H 50.8mmx25.4mmx11.8mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-MDMA-P6

Number of Outputs

2

Efficiency

86%

Voltage - Isolation

1.5kV

Voltage - Input (Max)

75V

Voltage - Input (Min)

18V

Trim/Adjustable Output

NO

Current - Output (Max)

1.5A

Output Power

15W

Control Features

Enable, Active High

Voltage - Output

5V

Voltage - Output 2

-5V

Isolation

Isolated

Features

OCP, OVP, SCP, UVLO

Height

11.938mm

Length

50.8mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
