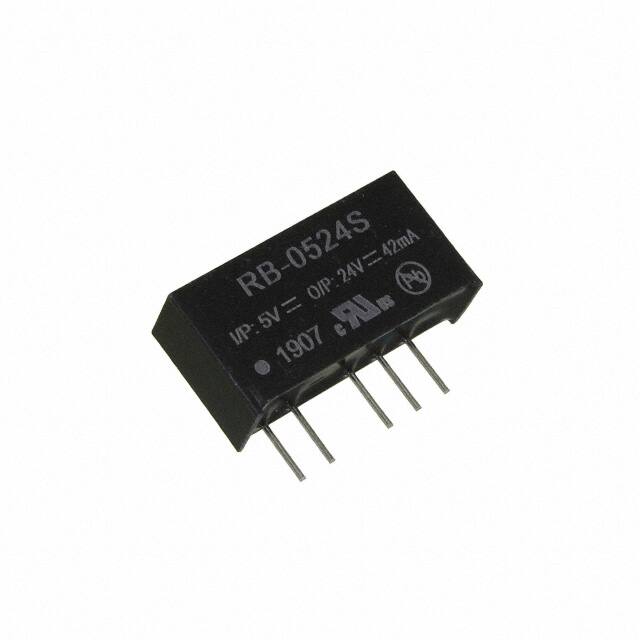

Factory Lead Time

9 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

7-SIP Module, 5 Leads

Weight

2.2g

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

ECONOLINE RB (1W)

Size / Dimension

0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

1W

Terminal Position

SINGLE

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

7/5

JESD-30 Code

R-XSMA-P5

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

85%

Voltage - Isolation

1kV

Voltage - Input (Max)

5.5V

Output Voltage

24V

Max Output Current

42mA

Voltage - Input (Min)

4.5V

Input Voltage-Nom

5V

Trim/Adjustable Output

NO

Output Current

42mA

Output Power

1W

Max Output Voltage

24V

Nominal Input Voltage

5V

Features

SCP

Height

10.2mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
