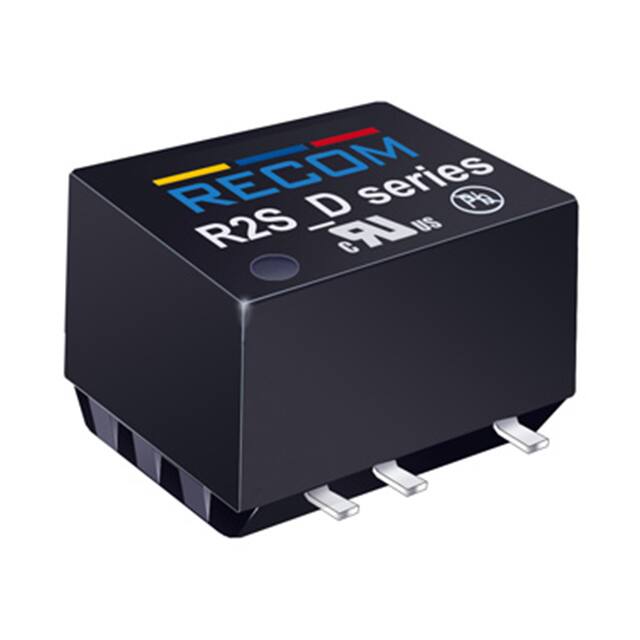

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

Package / Case

10-SMD Module, 6 Leads

Weight

1.5g

Voltage - Input (Nom)

12V

Power - Output (Max)

2W

Power Dissipation (Max)

2W

Operating Temperature

-40°C~100°C

Packaging

Tube

Series

ECONOLINE R2D (2W)

Size / Dimension

0.60Lx0.42W x 0.35 H 15.2mmx10.7mmx9.0mm

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Additional Feature

SEATED HGT CALCULATED

Power Rating

2W

Terminal Position

DUAL

Terminal Form

FLAT

Number of Functions

1

Depth

8.7mm

Time@Peak Reflow Temperature-Max (s)

30; 5

JESD-30 Code

R-XDMA-F6

Number of Outputs

2

Qualification Status

Not Qualified

Efficiency

80%

Voltage - Isolation

1kV

Voltage - Input (Max)

13.2V

Voltage - Input (Min)

10.8V

Trim/Adjustable Output

NO

Current - Output (Max)

200mA

Current - Output

200mA

Output Power

2W

Max Output Voltage

5V

Voltage - Output

5V

Current - Output 1

200mA

Nominal Input Voltage

12V

Nominal Output Voltage

-5V

Current - Output 2

200mA

Max Input Voltage (DC)

12V

Features

SCP

Height

8.7mm

Width

10.7mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
