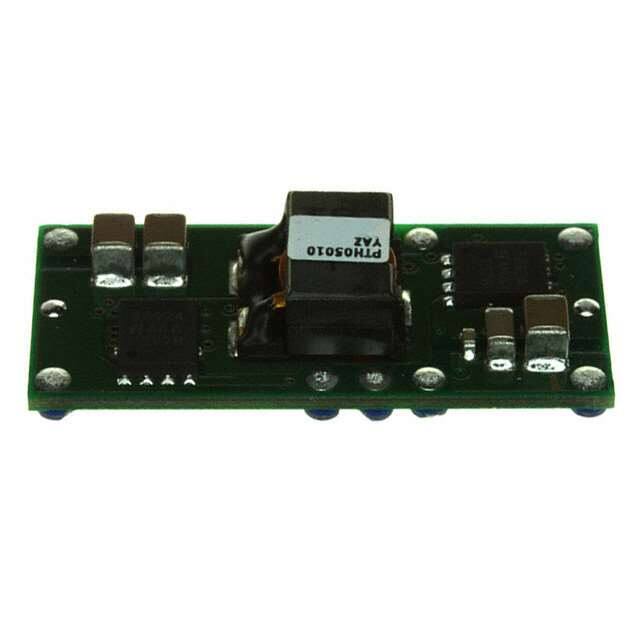

Lifecycle Status

ACTIVE (Last Updated: 6 days ago)

Factory Lead Time

8 Weeks

Mounting Type

Surface Mount

Package / Case

10-SMD Module

Surface Mount

YES

Number of Pins

10

Weight

3.7g

Voltage - Input (Nom)

5V

Power Dissipation (Max)

27W

Operating Temperature

-40°C~85°C

Packaging

Tray

Series

PTH05010Y

Size / Dimension

1.37Lx0.62W x 0.38 H 34.8mmx15.8mmx9.6mm

JESD-609 Code

e1

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

20

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Applications

ITE (Commercial)

Additional Feature

OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION

HTS Code

8504.40.85.00

Terminal Position

DUAL

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Depth

15.75mm

Base Part Number

TH05010

Number of Outputs

1

Approval Agency

UL, VDE

Efficiency

88%

Voltage - Input (Max)

5.5V

Voltage - Input (Min)

4.5V

Trim/Adjustable Output

YES

Current - Output (Max)

15A

Current - Output

15A

Quiescent Current

10mA

Max Output Voltage

1.8V

Voltage - Output

1.8V

Protections

OUTPUT OVER CURRENT

Control Mode

VOLTAGE-MODE

Current - Output 1

15A

Min Output Voltage

550mV

Isolation

Non-Isolated

Features

Remote On/Off, OCP, UVLO

Height

9mm

Length

34.8mm

Thickness

8.75mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Flammability Rating

UL94 V-0

Lead Free

Lead Free
