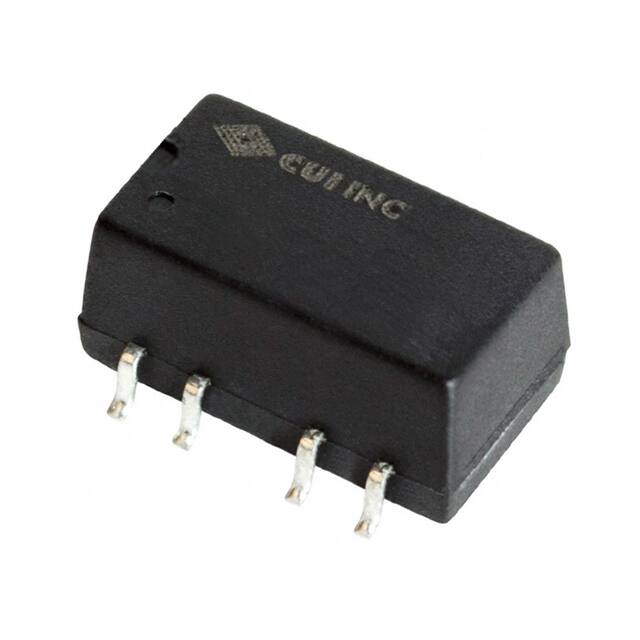

Factory Lead Time

9 Weeks

Mounting Type

Surface Mount

Package / Case

10-SMD Module, 6 Leads

Surface Mount

YES

Number of Pins

10/6

Voltage - Input (Nom)

3.3V

Operating Temperature

-40°C~105°C With Derating

Series

PDS1-M (1W)

Published

2016

Size / Dimension

0.60Lx0.33W x 0.29 H 15.2mmx8.3mmx7.3mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

Type

Isolated Module

Applications

ITE (Commercial)

Power (Watts)

1W

Additional Feature

ADDITIONAL -5 VOLT OUTPUT ALSO AVAILABLE

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDMA-G6

Number of Outputs

2

Efficiency

78%

Voltage - Isolation

1.5kV

Voltage - Input (Max)

3.63V

Voltage - Input (Min)

2.97V

Trim/Adjustable Output

NO

Voltage - Output

5V

Voltage - Output 2

-5V

Total Power Output-Max

1W

Features

SCP

Height Seated (Max)

7.5mm

Width

8.3mm

RoHS Status

RoHS Compliant
