Factory Lead Time

9 Weeks

Mounting Type

PCB, Through Hole

Package / Case

7-SIP Module, 4 Leads

Number of Pins

4

Weight

4.3g

Voltage - Input (Nom)

24V

Power Dissipation (Max)

1W

Operating Temperature

-40°C~90°C

Series

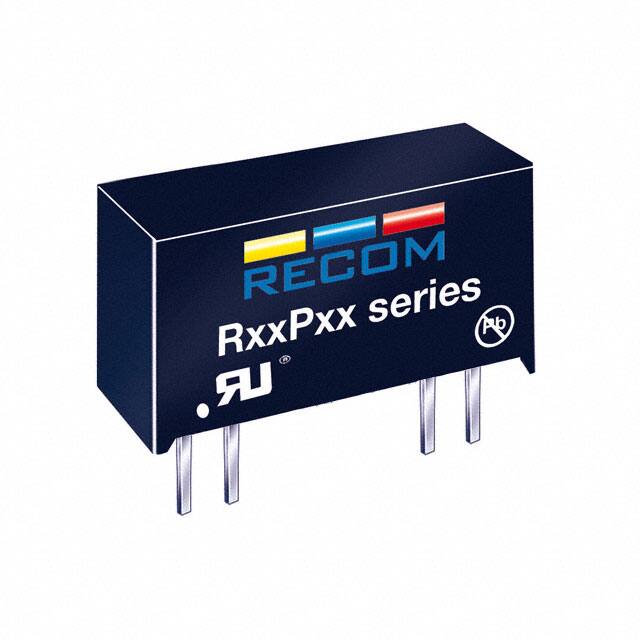

ECONOLINE RxxPxx (1W)

Packaging

Tube

Size / Dimension

0.77Lx0.39W x 0.49 H 19.7mmx9.8mmx12.5mm

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Type

Isolated Module

Terminal Finish

Tin (Sn)

Applications

ITE (Commercial), Medical

Terminal Position

SINGLE

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

9.8mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

1

Efficiency

75%

Voltage - Isolation

6.4kV

Voltage - Input (Max)

26.4V

Voltage - Input (Min)

21.6V

Trim/Adjustable Output

NO

Current - Output (Max)

84mA

Current - Output

84mA

Output Power

1W

Max Output Voltage

12V

Voltage - Output

12V

Current - Output 1

84mA

Total Power Output-Max

1W

Nominal Input Voltage

24V

Isolation

Isolated

Features

SCP

Height

12.5mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
