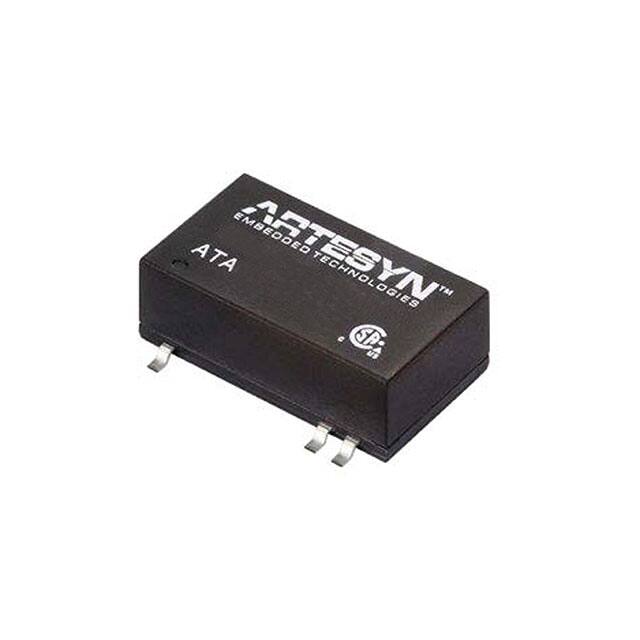

Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

16-SMD Module, 7 Leads

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

ATA (3W)

Published

2005

Size / Dimension

0.94Lx0.54W x 0.31 H 23.9mmx13.7mmx8.0mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

2 (1 Year)

Number of Terminations

7

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

3W

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

245

Number of Functions

1

Terminal Pitch

2.54mm

Depth

23.8mm

Time@Peak Reflow Temperature-Max (s)

30

JESD-30 Code

R-PDMA-P7

Number of Outputs

1

Efficiency

78%

Voltage - Isolation

1.5kV

Voltage - Input (Max)

36V

Output Voltage

5V

Max Output Current

600mA

Input Voltage-Nom

18V

Trim/Adjustable Output

NO

Output Power

3W

Current - Output 1

600mA

Max Output Power

3W

Max Input Voltage (DC)

36V

Min Input Voltage (DC)

9V

Features

Remote On/Off, OCP, SCP

Height

7.874mm

Length

24mm

REACH SVHC

Unknown

RoHS Status

RoHS Compliant
