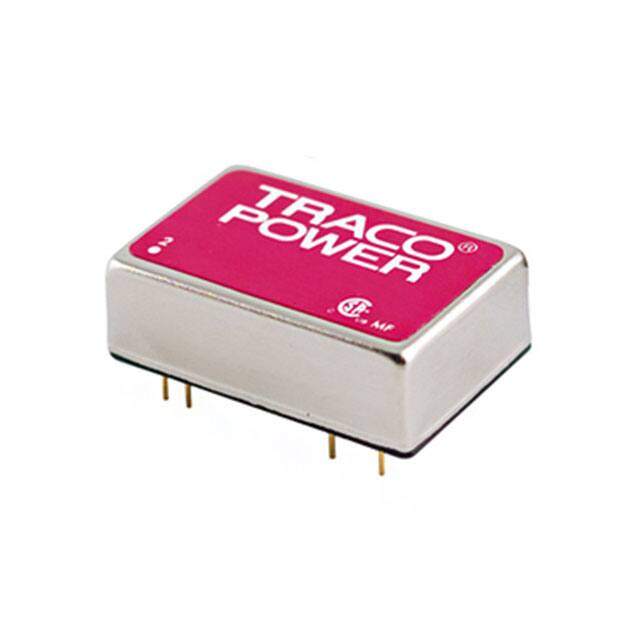

Factory Lead Time

11 Weeks

Mounting Type

Through Hole

Package / Case

24-DIP Module, 7 Leads

Surface Mount

NO

Operating Temperature

-40°C~85°C With Derating

Series

TEN 5 (6W)

Published

2010

Size / Dimension

1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

8

ECCN Code

EAR99

Type

Isolated Module

Terminal Finish

Gold (Au) - with Nickel (Ni) barrier

Applications

ITE (Commercial)

Power (Watts)

5W

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XDMA-P8

Number of Outputs

2

Qualification Status

Not Qualified

Efficiency

83%

Voltage - Isolation

1.5kV

Voltage - Input (Max)

36V

Output Voltage

5V

Voltage - Input (Min)

18V

Input Voltage-Nom

24V

Trim/Adjustable Output

NO

Voltage - Output 2

-5V

Total Power Output-Max

5W

Features

SCP

Height Seated (Max)

10.5mm

RoHS Status

ROHS3 Compliant
