Factory Lead Time

12 Weeks

Mount

PCB, Through Hole

Mounting Type

Through Hole

Package / Case

6-DIP Module

Number of Pins

6

Weight

27g

Operating Temperature

-25°C~85°C

Packaging

Tube

Series

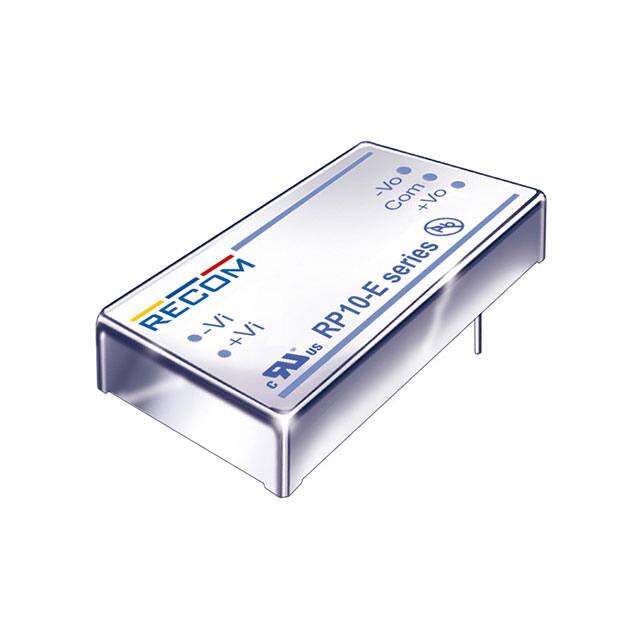

POWERLINE RP10-E (10W)

Size / Dimension

2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

10W

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

25.4mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

2

Efficiency

84%

Voltage - Isolation

1.6kV

Voltage - Input (Max)

36V

Output Voltage

15V

Max Output Current

333mA

Voltage - Input (Min)

18V

Input Voltage-Nom

24V

Trim/Adjustable Output

NO

Output Current

333mA

Output Power

10W

Max Output Voltage

15V

Voltage - Output 2

-15V

Total Power Output-Max

9.99W

Nominal Input Voltage

24V

Isolation

Isolated

Current - Output 2

333mA

Features

OCP, OVP, SCP

Height

10.2mm

Length

50.8mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
