Mount

Surface Mount

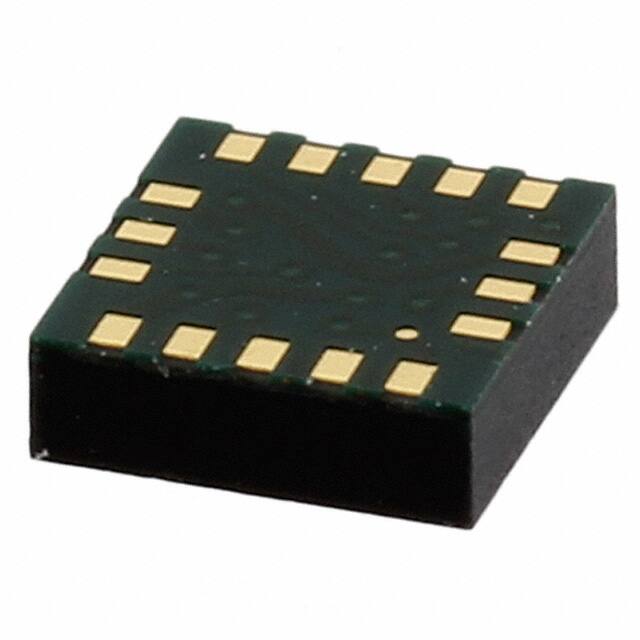

Package / Case

16-VFLGA

Number of Pins

16

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Published

2013

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

16

Type

Digital

HTS Code

8542.39.00.01

Voltage - Supply

1.71V~3.6V

Terminal Position

QUAD

Number of Functions

1

Supply Voltage

2.5V

Terminal Pitch

0.5mm

Output Type

I2C, SPI

Operating Supply Voltage

1.8V

Power Supplies

2.5V

Interface

I2C, SPI

Operating Supply Current

5.4mA

Resolution

2 B

Max Supply Voltage (DC)

3.6V

Min Supply Voltage (DC)

1.71V

Axis

X (Pitch), Y (Roll), Z (Yaw)

Features

Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor

Range °/s

±31.25, 62.50, 125, 250, 500, 1000, 2000

Sensitivity (LSB/(°/s))

15 ~ 960

Height

900μm

Length

3mm

Width

3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
