EN5367QI - Intel

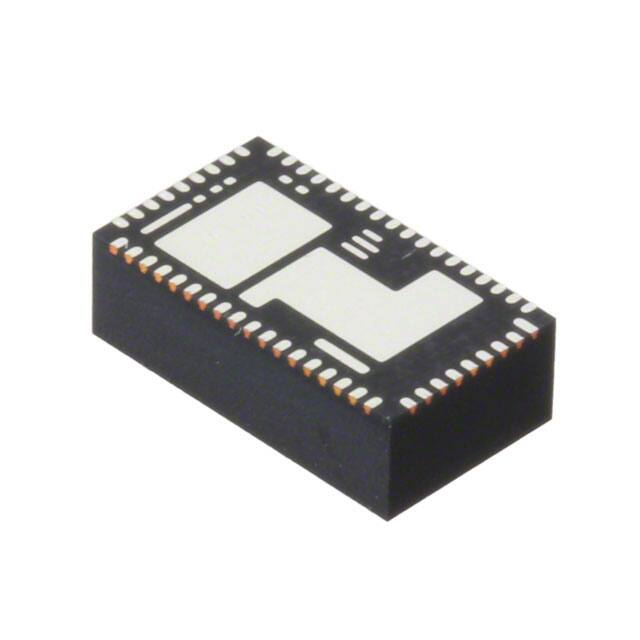

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY33-EN5367QI

Hersteller Teil #: EN5367QI

Produktkategorie: DC DC Converters

Hersteller: Intel

Beschreibung: EN5367QI Series 2.5 - 5.5 V 6 A Synchronous Buck DC-DC Converter - QFN-54

Verpackung: 54-PowerBFQFN Module

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

EN5367QI Datenblatt

Attribute

Attribute Value

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

Package / Case

54-PowerBFQFN Module

Surface Mount

YES

Voltage - Input (Nom)

Operating Temperature

-40°C~85°C

Packaging

Cut Tape (CT)

Series

Enpirion® 5300

Size / Dimension

0.39Lx0.22W x 0.12 H 10.0mmx5.5mmx3.0mm

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Applications

ITE (Commercial)

Additional Feature

OUTPUT VOLTAGE RANGE FROM 0.6 V TO 4.9 V

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XQCC-N54

Number of Outputs

Efficiency

93%

Voltage - Input (Max)

5.5V

Voltage - Input (Min)

2.5V

Control Features

Enable, Active High

Control Mode

VOLTAGE-MODE

Control Technique

PULSE WIDTH MODULATION

Switcher Configuration

BUCK

Switching Frequency-Max

4000kHz

Features

Remote On/Off, OCP, OTP, SCP, UVLO

Height Seated (Max)

3.05mm

Width

5.5mm

RoHS Status

RoHS Compliant
