Factory Lead Time

9 Weeks

Mounting Type

Through Hole

Package / Case

7-SIP Module, 4 Leads

Surface Mount

NO

Weight

2.6g

Voltage - Input (Nom)

5V

Operating Temperature

-40°C~85°C

Series

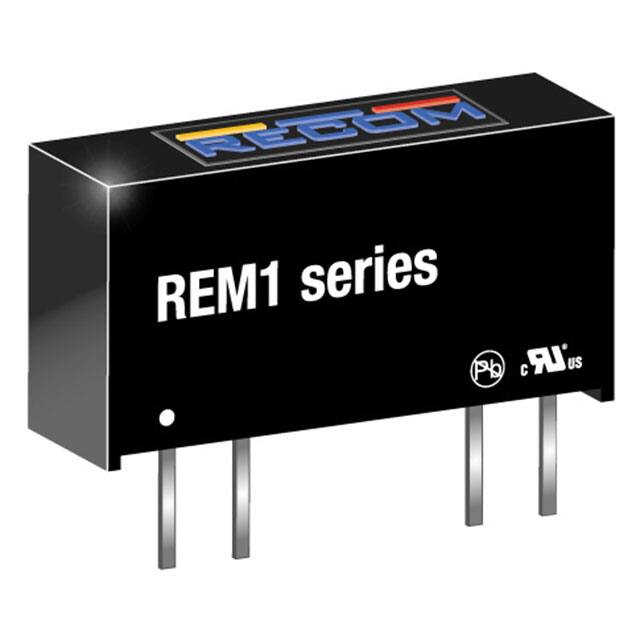

MEDLINE REM1 (1W)

Size / Dimension

0.77Lx0.24W x 0.40 H 19.6mmx6.0mmx10.2mm

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

Type

Isolated Module

Applications

Medical

Terminal Position

SINGLE

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PSMA-P4

Number of Outputs

1

Efficiency

80%

Voltage - Isolation

5.2kV

Voltage - Input (Max)

5.5V

Voltage - Input (Min)

4.5V

Trim/Adjustable Output

NO

Current - Output

200mA

Output Power

1W

Max Output Voltage

5V

Voltage - Output

5V

Total Power Output-Max

1W

Height

10.2mm

Width

6mm

RoHS Status

ROHS3 Compliant
