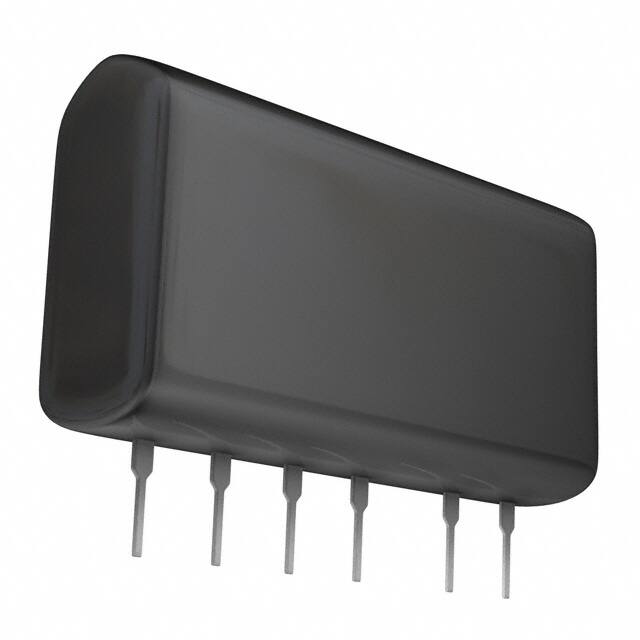

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

12-SIP Module, 6 Leads

Number of Pins

6

Operating Temperature

-25°C~80°C With Derating

Packaging

Bulk

Series

BP5061

Published

2008

Size / Dimension

1.38Lx0.36W x 0.77 H 35.0mmx9.1mmx19.5mm

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Type

Enclosed

Terminal Finish

Tin/Copper (Sn/Cu)

Applications

ITE (Commercial)

Power (Watts)

4W

Max Power Dissipation

4W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

10

Pin Count

12

Number of Outputs

1

Efficiency

78%

Output Voltage

12V

Max Output Current

300mA

Input Voltage-Nom

-141V

Trim/Adjustable Output

NO

Max Supply Voltage

-170V

Min Supply Voltage

-113V

Output Current

300mA

Output Power

3.6W

Total Power Output-Max

3.9W

Max Supply Voltage (AC)

120V

Line Regulation

40mV

Load Regulation

50mV

Min Supply Voltage (AC)

80V

Height

19.558mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Contains Lead
