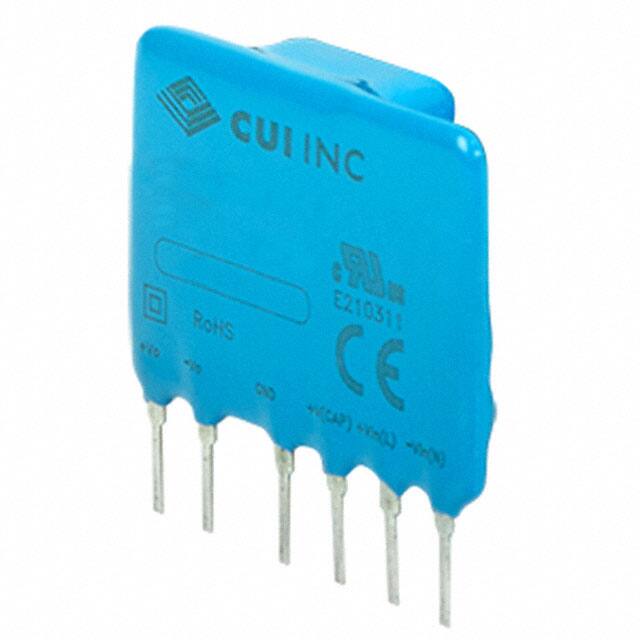

Factory Lead Time

14 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

12-SIP Module, 6 Leads

Weight

0.018lb 8.16g

Operating Temperature

-25°C~85°C

Series

PBK-1 (1W)

Published

2015

Size / Dimension

1.38Lx0.43W x 1.06 H 35.0mmx11.0mmx27.0mm

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Type

Enclosed

Applications

ITE (Commercial)

Additional Feature

ALSO AVAILABLE WITH 70V TO 400 DC INPUT VOLTAGE; LGT-MAX;WDT-MAX

Max Power Dissipation

1W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XSMA-T6

Number of Outputs

1

Approval Agency

CE, cULus

Efficiency

69%

Output Voltage

15V

Max Output Current

67mA

Input Voltage-Nom

115V

Trim/Adjustable Output

NO

Output Power

1W

Protections

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

Total Power Output-Max

1W

Line Regulation

±1.5%

Load Regulation

±2.5%

Ripple Voltage (Main Out)

0.04242Vrms

Features

OCP, SCP

Height

26.924mm

Length

35mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
