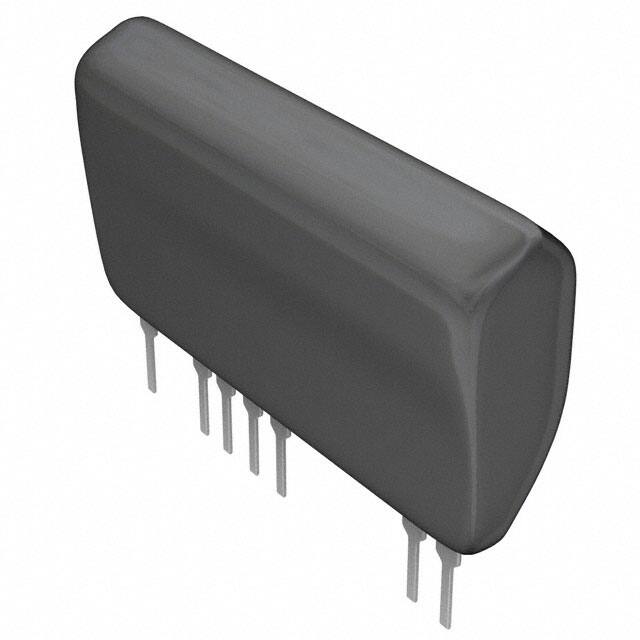

Factory Lead Time

12 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

11-SIP Module, 7 Leads

Number of Pins

11

Operating Temperature

-25°C~80°C With Derating

Packaging

Cut Tape (CT)

Published

2010

Size / Dimension

1.28Lx0.37W x 0.85 H 32.5mmx9.5mmx21.5mm

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

7

ECCN Code

EAR99

Type

Enclosed

Terminal Finish

Tin/Copper (Sn/Cu)

Applications

ITE (Commercial)

Power (Watts)

12W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

12V

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XSMA-T7

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

83%

Output Voltage

12V

Max Output Current

1.6A

Trim/Adjustable Output

NO

Interface

On/Off

Max Supply Voltage

500V

Min Supply Voltage

8.8V

Output Configuration

Low Side

Output Current

1A

Output Power

13W

Fault Protection

Over Temperature, Over Voltage

Line Regulation

5mV

Load Regulation

58mV

RoHS Status

ROHS3 Compliant
