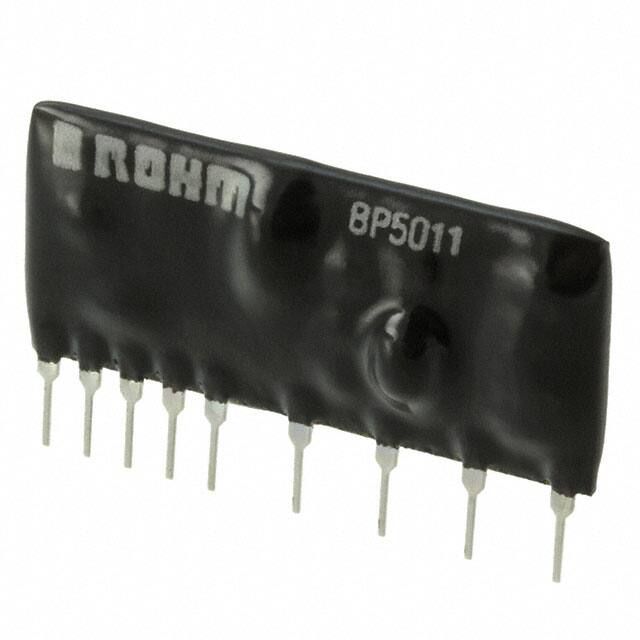

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

13-SIP Module, 9 Leads

Operating Temperature

-20°C~85°C With Derating

Published

2010

Size / Dimension

1.38Lx0.32W x 0.69 H 35.1mmx8.1mmx17.4mm

JESD-609 Code

e3/e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

9

ECCN Code

EAR99

Type

Enclosed

Terminal Finish

TIN/TIN COPPER

Applications

ITE (Commercial)

Power (Watts)

1W

Max Power Dissipation

1W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

10

JESD-30 Code

R-XSMA-T9

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

68%

Output Voltage

-5V

Max Output Current

200mA

Input Voltage-Nom

-141V

Trim/Adjustable Output

NO

Line Regulation

10mV

Height

17.526mm

RoHS Status

ROHS3 Compliant
