Factory Lead Time

25 Weeks

Contact Plating

Copper, Tin

Mount

Through Hole

Mounting Type

Through Hole

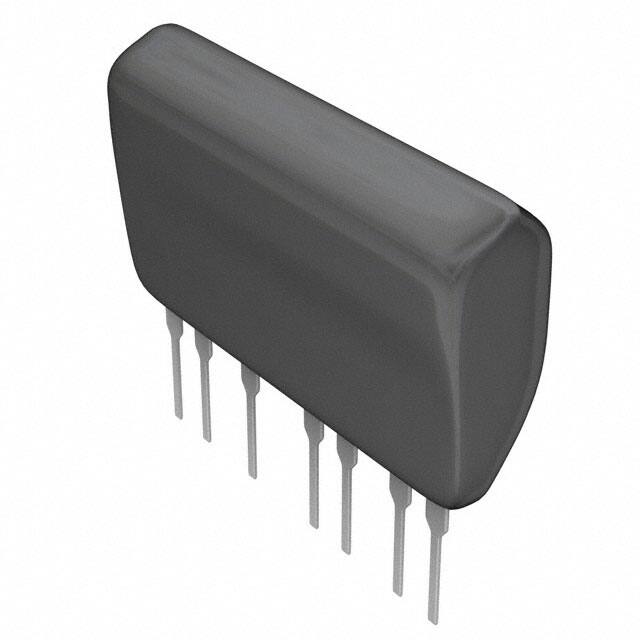

Package / Case

11-SIP Module, 7 Leads

Operating Temperature

-20°C~80°C With Derating

Packaging

Tape & Reel (TR)

Published

2010

Size / Dimension

1.42Lx0.59W x 0.94 H 36.0mmx15.0mmx24.0mm

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

7

ECCN Code

EAR99

Type

Enclosed

Terminal Finish

Tin/Copper (Sn/Cu)

Applications

ITE (Commercial)

Power (Watts)

4W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

10

JESD-30 Code

R-XSMA-T7

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

77%

Output Voltage

12V

Max Output Current

2A

Input Voltage-Nom

141V

Trim/Adjustable Output

NO

Interface

On/Off

Max Supply Voltage

162V

Min Supply Voltage

120V

Output Configuration

High Side

Output Current

350mA

Fault Protection

Over Temperature, Reverse Current

Line Regulation

150mV

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
