Factory Lead Time

15 Weeks

Contact Plating

Gold, Nickel

Mounting Type

CABLE AND PANEL

Shell Material

STEEL

Cable Types

Round

Contact Finish Mating

GOLD (30)

Contact Materials

Copper

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Series

Buccaneer®

Published

2005

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

Not Applicable

Termination

Crimp

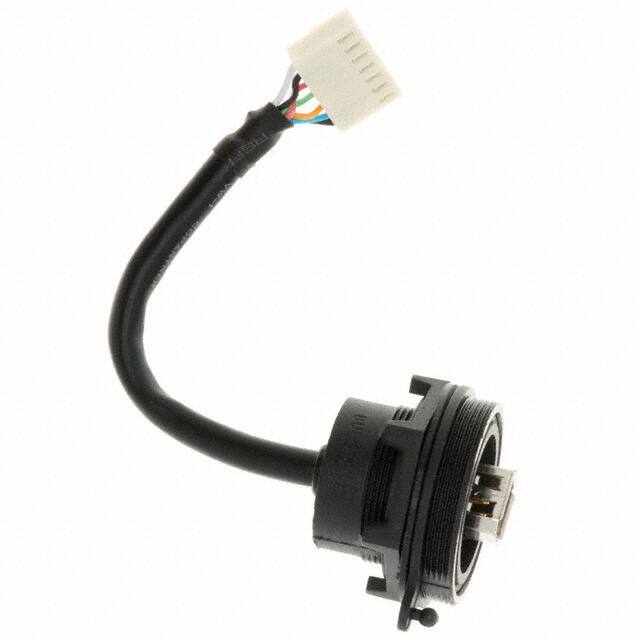

Connector Type

IEEE 1394 (Firewire) 6 pos Receptacle to Rectangular 7 pos Plug

Max Operating Temperature

70°C

Min Operating Temperature

0°C

Color

Black

Gender

Receptacle

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Mixed Contacts

NO

Option

WITH CABLE ASSEMBLY

Shielding

Shielded

Current Rating

1A

Voltage - Rated AC

30V

Number of Contacts

6

Mating Information

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code

94V-0

Empty Shell

NO

Max Voltage Rating (AC)

30V

Max Current Rating

1A

Number of Ports

1

Cable Length

132mm

Wire/Cable Gauge

28 AWG

Usage

Industrial Environments - IP68

Length

0.48' 145.6mm

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Flammability Rating

UL94 V-0
