Mount

Through Hole

Mounting Type

Through Hole

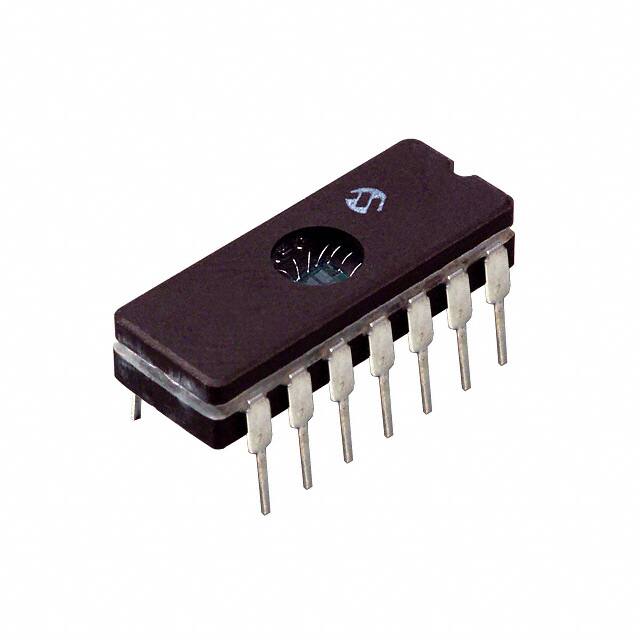

Package / Case

14-CDIP (0.300, 7.62mm)

Number of Pins

14

Driver Configuration

Low-Side

Logic voltage-VIL, VIH

0.8V 2.4V

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

Published

2002

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

14

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Max Power Dissipation

840mW

Voltage - Supply

4.5V~18V

Terminal Position

DUAL

Number of Functions

4

Base Part Number

TC4469

Pin Count

14

Max Output Current

1.2A

Nominal Supply Current

4mA

Power Dissipation

840mW

Max Supply Current

4mA

Propagation Delay

75 ns

Input Type

Inverting, Non-Inverting

Rise Time

25ns

Fall Time (Typ)

25 ns

Rise / Fall Time (Typ)

15ns 15ns

Interface IC Type

AND GATE BASED MOSFET DRIVER

Channel Type

Independent

Number of Drivers

4

Turn On Time

0.1 μs

Output Peak Current Limit-Nom

1.2A

Gate Type

N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)

1.2A 1.2A

High Side Driver

YES

Turn Off Time

0.1 μs

Length

19.305mm

Height Seated (Max)

5.08mm

Width

7.62mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
