Factory Lead Time

1 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

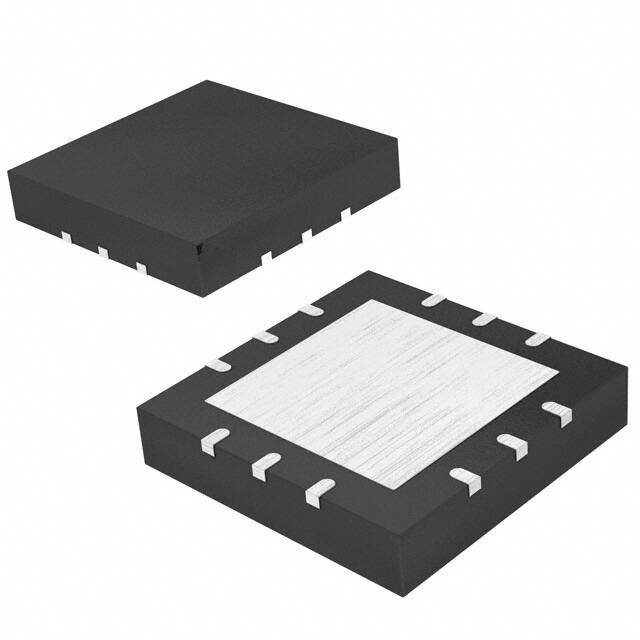

Package / Case

12-VQFN Exposed Pad

Number of Pins

12

Weight

21.99923mg

Driver Configuration

Half-Bridge

Logic voltage-VIL, VIH

0.3V 1.2V

Operating Temperature

-20°C~125°C TJ

Packaging

Tape & Reel (TR)

Published

2006

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

12

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Voltage - Supply

4.5V~13V

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

12V

Terminal Pitch

0.8mm

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

MD1210

Max Output Current

2A

Operating Supply Voltage

12V

Operating Supply Current

550μA

Nominal Supply Current

550μA

Output Current

2A

Propagation Delay

7 ns

Input Type

Non-Inverting

Rise Time

6ns

Fall Time (Typ)

6 ns

Rise / Fall Time (Typ)

6ns 6ns

Interface IC Type

AND GATE BASED MOSFET DRIVER

Channel Type

Independent

Number of Drivers

2

Output Peak Current Limit-Nom

2A

Gate Type

N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)

2A 2A

High Side Driver

YES

Length

4mm

Height Seated (Max)

1mm

Width

4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
