Factory Lead Time

10 Weeks

Mounting Type

Through Hole, Right Angle

Material

Metal

Dielectric Material

Polybutylene Terephthalate (PBT)

Shell Material, Finish

Steel, Nickel Plated

Mounting Option 2

THREADED

Contact Materials

Copper Alloy

Voltage Rated

250VAC

Operating Temperature

-55°C~85°C

Packaging

Tray

Series

DPD

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder

ECCN Code

EAR99

Connector Type

Plug, Male Pins; Receptacle, Female Sockets

Number of Positions

9, 9

Color

Black

Number of Rows

2, 2

HTS Code

8536.69.40.30

MIL Conformance

YES

Contact Type

Signal

Current Rating (Amps)

3A

Total Number of Contacts

18

Terminal Pitch

2.7686mm

Shell Finish

TIN

Reference Standard

UL, CSA

Contact Finish

Gold

Reliability

MIL-C-24308

Body Length or Diameter

1.213 inch

Number Of PCB Rows

2+2

PCB Contact Pattern

STAGGERED

Body Breadth

1.244 inch

Contact Gender

MALE/FEMALE

Body Depth

0.773 inch

Contact Resistance

20mOhm

Insulation Resistance

5000000000Ohm

Flange Feature

Mating Side (4-40)

Mating Contact Pitch

0.109 inch

Body/Shell Style

PLUG/RECEPTACLE

Dielectric Withstanding Voltage

1000VAC V

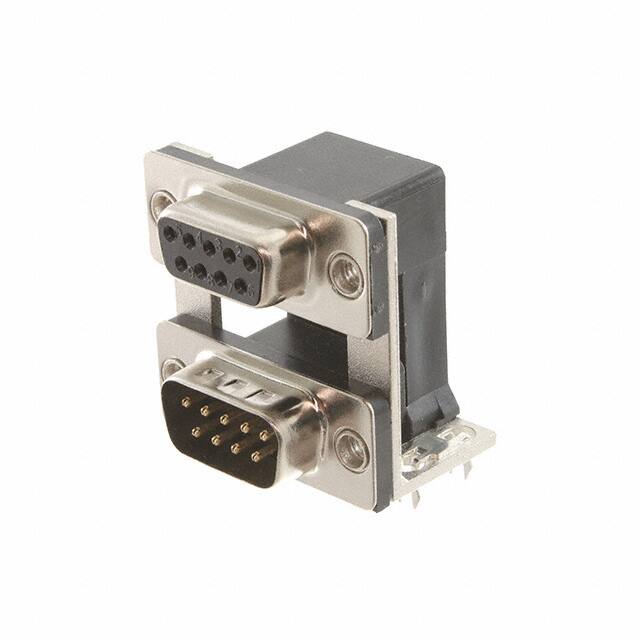

Connector Style

D-Sub - Stacked

PCB Contact Row Spacing

3.9116 mm

Insertion Force-Max

2.78 N

Withdrawl Force-Min

1.946 N

Mating Contact Row Spacing

0.112 inch

Contact Form

Stamped

Shell Size, Connector Layout

1 DE E ; 1 DE E

Backset Spacing

0.318 (8.08mm)

Features

Board Lock, Grounding Indents, Mounting Brackets

Contact Finish Thickness

5.00μin 0.127μm

Plating Thickness

5μin

Length - Termination

0.126 inch

Material Flammability Rating

UL94 V-0

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
