Bend radius (no. of ODs for flexible installation)

15

Bend radius (no. of ODs for fixed installation)

4

Cable Types

CLASSIC 100

Content

Sold per metre

Cross section

12 G 1 mm²

Factory colour

Grey

Cross section (each core)

1mm²

Suited for cable carriers

No

Halogen-free

No

Insulation Materials

PVC

Cable features

Flexible,High flexural strength

Manufacturer part #

10050-1

Nominal voltage

750V

Outside Ø

10.50mm

Max. length sold by the metre

300m

Nominal voltage U0

450V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

Number-coded

No

No. of leads

12G

Package

No

Core layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Certification marks

In accordance with: IEC 60227-5 HD 21.5 S3 VDE 0281 Part 5 HD 21.13 S1 VDE 0281 Part 13

RoHS-compliant

Yes

Sold per metre

Yes

Type

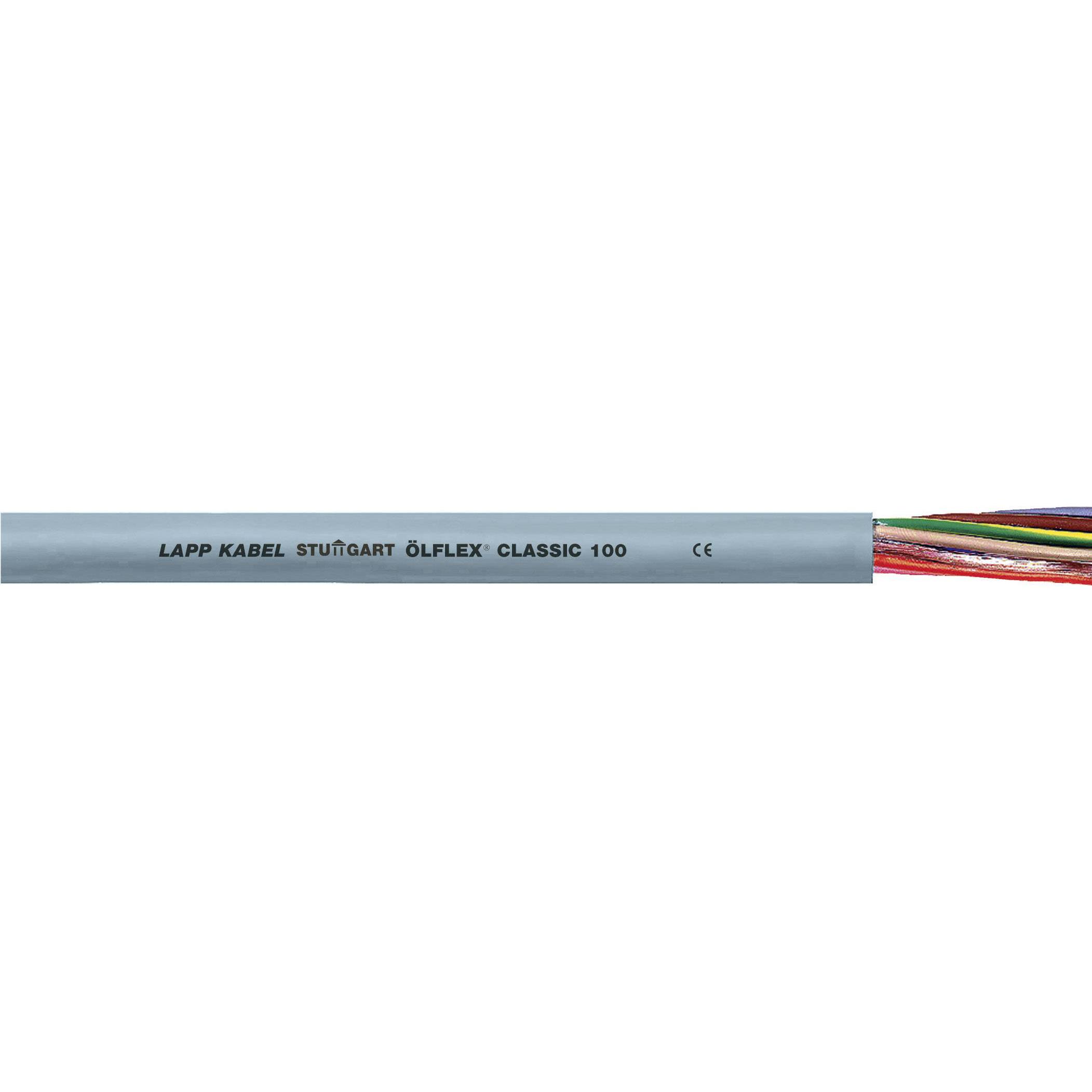

ÖLFLEX® CLASSIC 100

Insulation

Specific contact resistance: > 20 GΩ x cm

Temperature range

Moving: -5 - +70 °C, when fixed : -40 - +80°C

Bend radius

15 x external dia. for wide range of applications, 4 x external dia. when permanently installed

Test voltage

4000V
