Bend radius (no. of ODs for flexible installation)

20

Bend radius (no. of ODs for fixed installation)

6

Cable Types

H05VVC4V5-K (NYSLYCYÖ-JZ)

Content

100m

Cross section

3 G 0.75 mm²

Factory colour

Grey

Cross section (each core)

0.75mm²

Halogen-free

No

Insulation Materials

PVC

Cable features

Harmonised,Oil-resistant,Shielded,Flexible

Manufacturer part #

35710-100

Material (details)

PVC

Nominal voltage

500V

Outside Ø

9.40mm

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+70°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

No. of leads

3G

Package

Yes

Core layout

Finely stranded

Wire ID code

Black with white numbers according to VDE 0293

Sold per metre

No

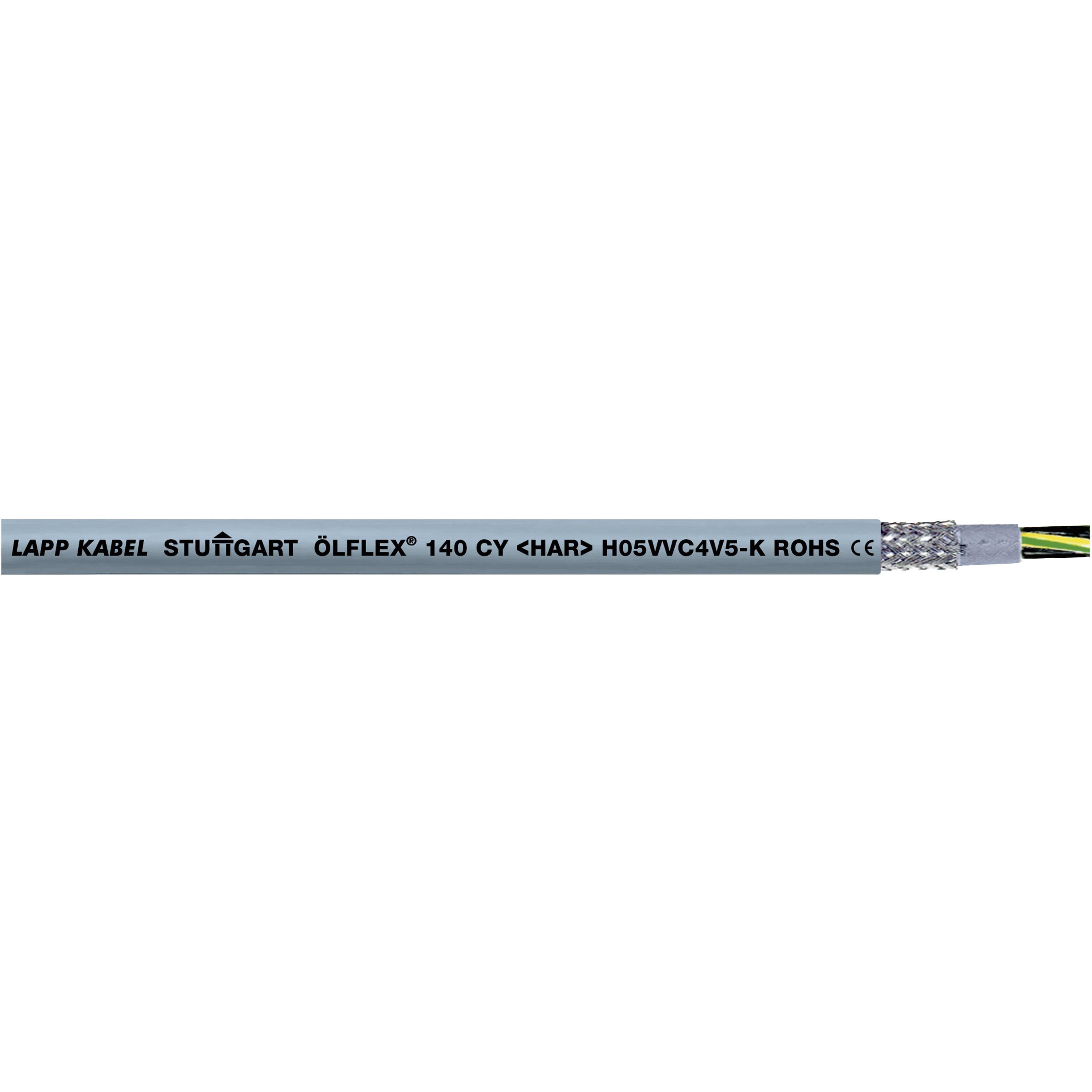

Type

ÖLFLEX 140 CY 3G0,75

Test voltage

3000V
