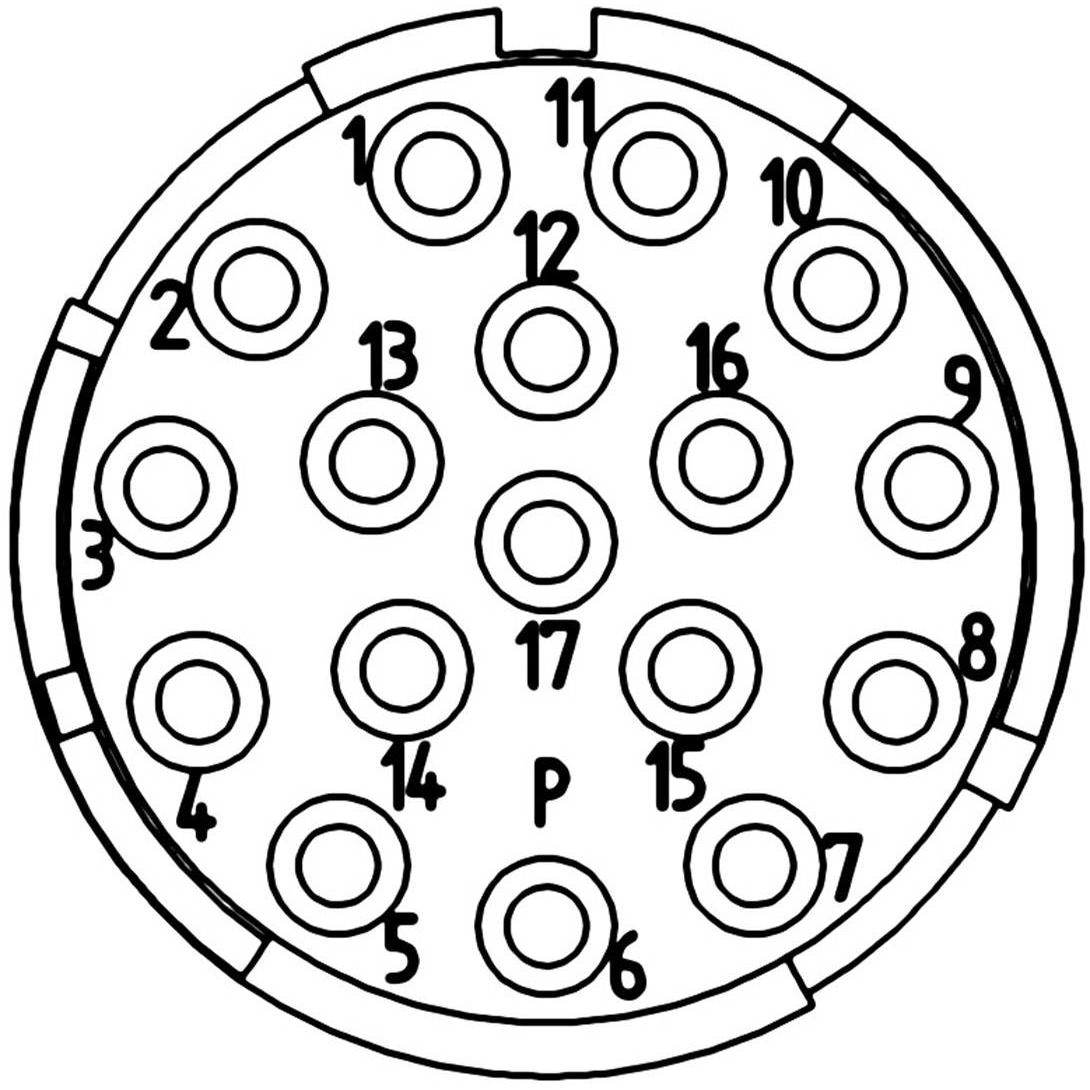

Number of pins

17

Connector cross section

0.14 - 1mm²

Manufacturer part #

73018010

Connections

Soldering,Crimp

Leading contact (PE)

No

Industrial packaging

Yes

Total no. of pins

17

Content

20pc(s)

With protective conductor

No

Connectable conductor cross section fine-strand with cable end sleeve

0.14 - 1

Type of electric connection

Soldering connection

Ambient temperature

-25 - 125

Rated current In

7

Connectable conductor cross section fine-strand without cable end sleeve

0.14 - 1

Material connector insert

Thermoplastic

Diameter plug-in contact

1

Material of contact surface

Gold

Material contact

Brass

Contact insert without contacts

No

Connectable conductor cross section multi-wired

0.14 - 1

Pollution degree

3

With wire protection

Yes

Overvoltage category

III

Inflammability class of insulation material according to with UL94

V0

Rated surge voltage

0.8

Connectable conductor cross section solid-core

0.14 - 1

Rohs Code

Yes

Manufacturer Part Number

73018010

Manufacturer

Lapp Group

Part Life Cycle Code

Active

Ihs Manufacturer

LAPP GROUP PVT LTD

Risk Rank

5.72

Connector type

Socket

Type

P-part, left-hand

Reach Compliance Code

compliant

Connector Support Type

CONNECTOR ACCESSORY

Test current

7A

Rated voltage

150V

Features

Left-hand
