Conductor material

Copper

Bend radius (no. of ODs for flexible installation)

12.5

Bend radius (no. of ODs for fixed installation)

4

Cable Types

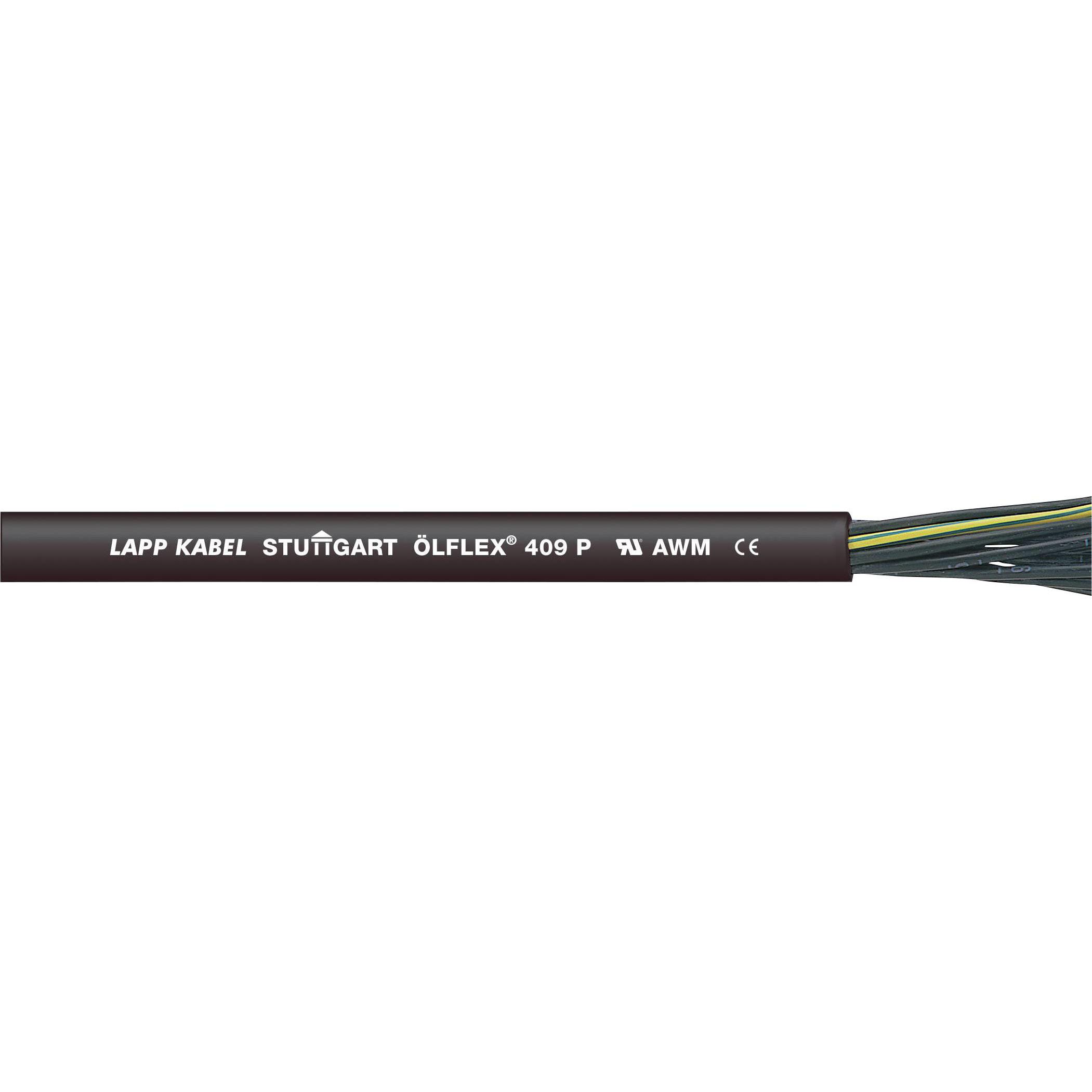

ÖLFLEX® 409 P

Content

Sold per metre

Cross section

7 G 1.50 mm²

Factory colour

Black

Cross section (each core)

1.50mm²

Halogen-free

No

Insulation Materials

Polyurethane

Cable features

Oil-resistant,Acid-resistant,UV-resistant,Ozone-resistant

Manufacturer part #

1311307

Nominal voltage

500V

Outside Ø

10.20mm

Max. length sold by the metre

300m

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

No. of leads

7G

Package

No

Core layout

Finely stranded according to VDE 0295,<br>Class 5 / IEC 60228

Wire ID code

Black with white numbers according to VDE 0293-1

Sold per metre

Yes

Conductor surface

Bare

Nominal cross section conductor

1.5

Conductor category

Class 5 = flexible

Stranding element

No

Material core insulation

Polyvinyl chloride (PVC)

Core identification

Numbers

Screen over stranding element

None

Screen over stranding

None

Material outer sheath

Polyurethane (PUR)

Colour outer sheath

Black

Flame retardant

According to IEC/EN 60332-1-2

Low smoke (according to EN 61034-2)

No

Outer diameter approx.

10.2

Min. permitted bending radius, stationary application/permanent installation

40.8

Permitted cable outer temperature during assembling/handling

-5 - 80

Permitted cable outer temperature after assembling without vibration

-40 - 80

Nominal voltage U

500

Low smoke according to IEC 61034-2

No

Halogen free according to IEC 60754-2

No

Type

1311307

Number of cores

7

Test voltage

4000V
