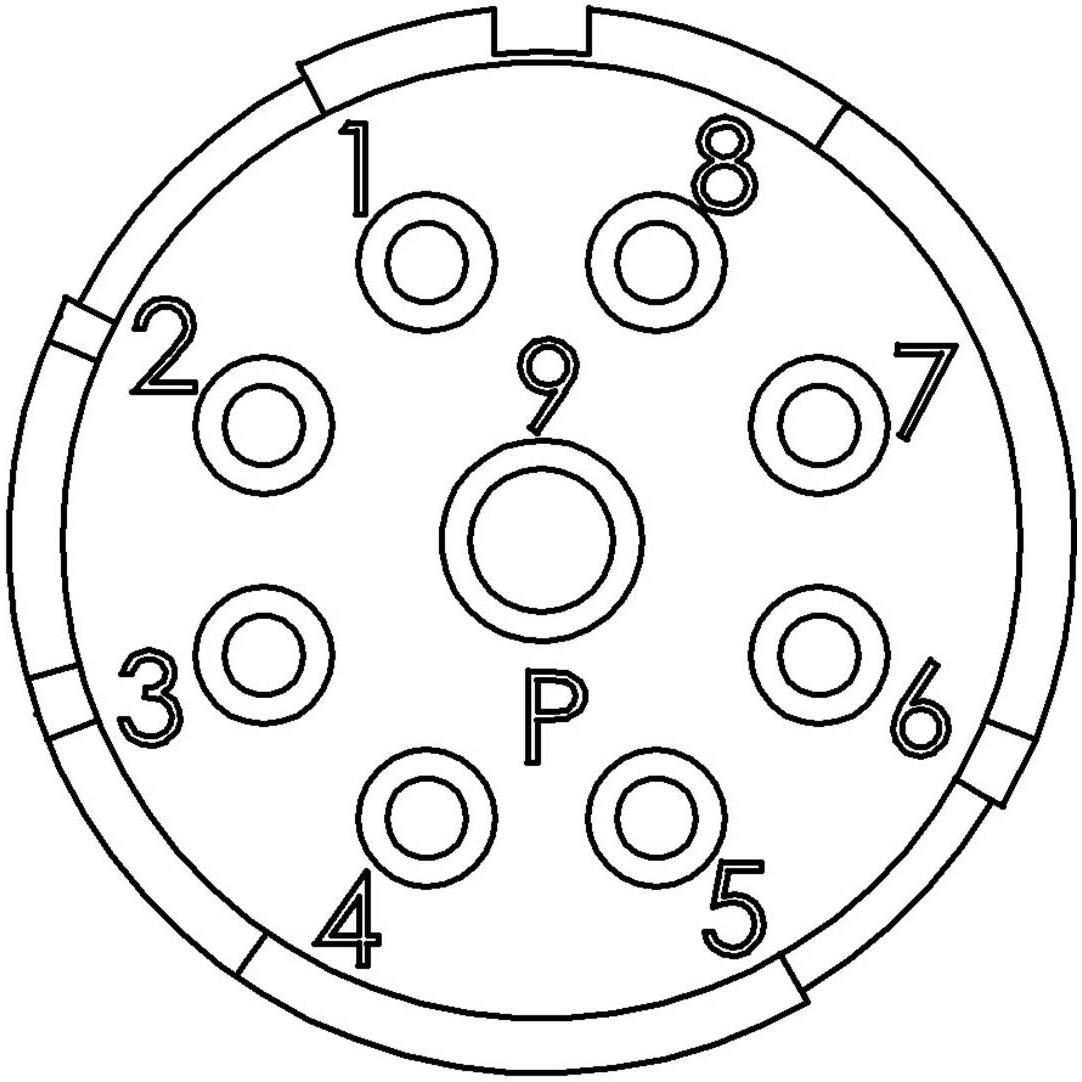

Number of pins

8

Content

5pc(s)

Total no. of pins

8 + PE

Industrial packaging

Yes

Leading contact (PE)

Yes

Manufacturer part #

73002736

Contamination level

3

Connector cross section

0.14 - 2.50mm²

Contact insert without contacts

Yes

Diameter plug-in contact

1

Material connector insert

Thermoplastic

Rated current In

7

Ambient temperature

-25 - 125

Rated surge voltage

2.5

Overvoltage category

II

Pollution degree

3

Type of electric connection

Crimp connection

With wire protection

Yes

Connectable conductor cross section fine-strand without cable end sleeve

0.14 - 1

Connectable conductor cross section fine-strand with cable end sleeve

0.14 - 1

Connectable conductor cross section solid-core

0.14 - 1

Connectable conductor cross section multi-wired

0.14 - 1

Material of contact surface

Gold

Material contact

Brass

Inflammability class of insulation material according to with UL94

V0

With protective conductor

No

Connector type

Socket,Plug

Type

P-part, left-hand

Contact type

Without contacts

Number of poles

9

Test current

20 A (2 mm contact)<br>7 A (1 mm contact)

Rated voltage

150

Features

Left-hand
