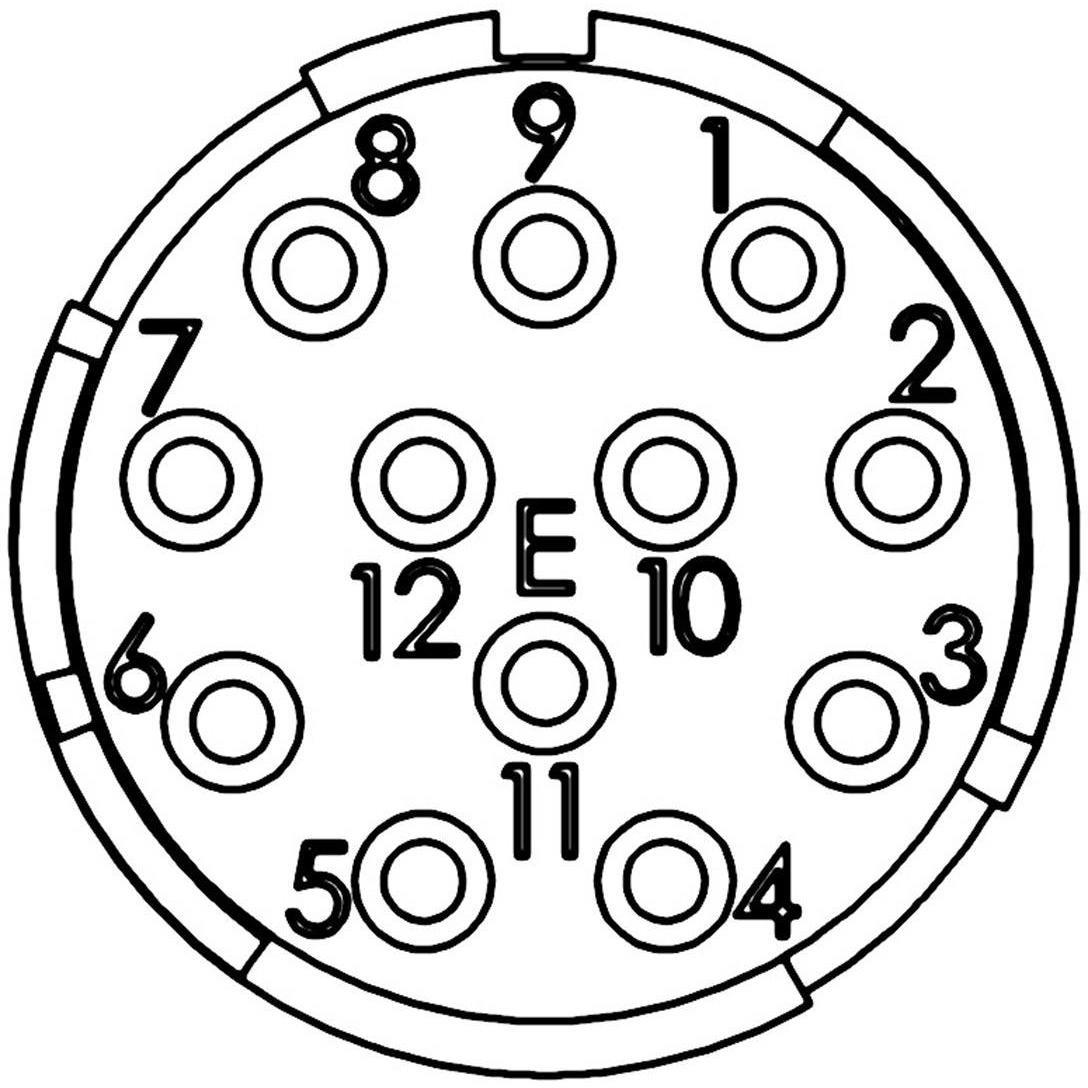

Number of pins

12

Content

5pc(s)

Total no. of pins

12

Industrial packaging

Yes

Leading contact (PE)

No

Connections

Crimp

Manufacturer part #

44420120

Connector cross section

0.08 - 0.56mm²

Contact insert without contacts

Yes

Diameter plug-in contact

1

Material connector insert

Thermoplastic

Rated current In

4

Ambient temperature

-25 - 125

Rated surge voltage

1.5

Overvoltage category

III

Pollution degree

3

Type of electric connection

Crimp connection

With wire protection

Yes

Connectable conductor cross section fine-strand without cable end sleeve

0.08 - 0.56

Connectable conductor cross section fine-strand with cable end sleeve

0.08 - 0.56

Connectable conductor cross section solid-core

0.08 - 0.56

Connectable conductor cross section multi-wired

0.08 - 0.56

Material of contact surface

Gold

Material contact

Brass

Inflammability class of insulation material according to with UL94

V0

With protective conductor

No

Connector type

Plug

Type

E-part, right-hand

Contact type

Pin

Number of poles

12

Test current

4A

Rated voltage

100V

Features

Right-hand
