Bend radius (no. of ODs for flexible installation)

20

Bend radius (no. of ODs for fixed installation)

6

Cable Types

CLASSIC 115 CY

Content

Sold per metre

Cross section

2 x 1.5 mm² without gn/ge

Factory colour

Grey

Cross section (each core)

1.50mm²

Suited for cable carriers

No

Halogen-free

No

Manufacturer part #

1136902-1

Nominal voltage

500V

Outside Ø

7.10mm

Max. length sold by the metre

100m

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+75°C

Min. temperature range (fixed installation)

-30°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

Number-coded

Yes

No. of leads

2x

Package

No

Core layout

Finely stranded according to VDE 0295, Class 5 / IEC 60228 Cl.5

Nominal voltage (details)

U0/U: 300/500V

Certification marks

DIN VDE according to: HD 21.13 S1 VDE 0281 Part 13

RoHS-compliant

Yes

Wire ID code

Black conductors with white number printing (VDE 0293)

Sold per metre

Yes

Type

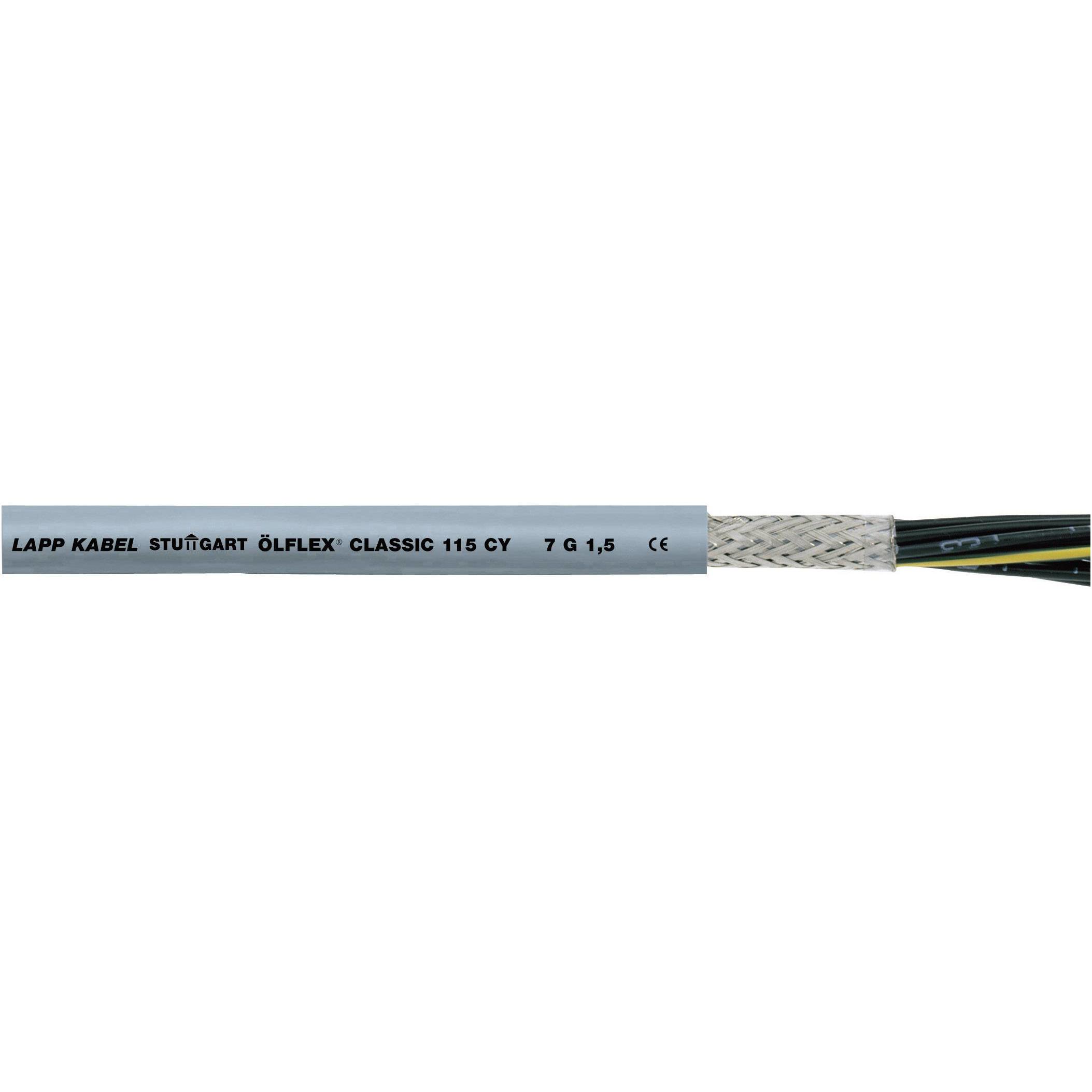

ÖLFLEX® CLASSIC 115 CY

Insulation resistance

Specific contact resistance : >20 GΩx cm

Temperature range

Temperature range -5 to +70 °C, when laid fixed: -30 to +70°C

Bend radius

For flexible use: 20 x external dia. · When laid fixed: 6 x external dia.

Test voltage

A/A 4000 V A/S 2000V
