Bend radius (no. of ODs for flexible installation)

20

Bend radius (no. of ODs for fixed installation)

6

Cable Types

ÖLFLEX® EB CY

Content

Sold per metre

Cross section

7 x 0.75 mm² without gn/ge

Factory colour

Sky blue

Cross section (each core)

0.75mm²

Halogen-free

No

Insulation Materials

PVC

Cable features

Shielded,Flame-retardant

Manufacturer part #

12644-1

Nominal voltage

500V

Outside Ø

8.30mm

Max. length sold by the metre

300m

Nominal voltage U0

300V

Max. temperature range (fixed installation)

+80°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (flexible installation)

-5°C

Number-coded

Yes

No. of leads

7x

Package

No

Certification marks

In accordance with VDE-Guideline VDE 0250

RoHS-compliant

Yes

Sold per metre

Yes

Type

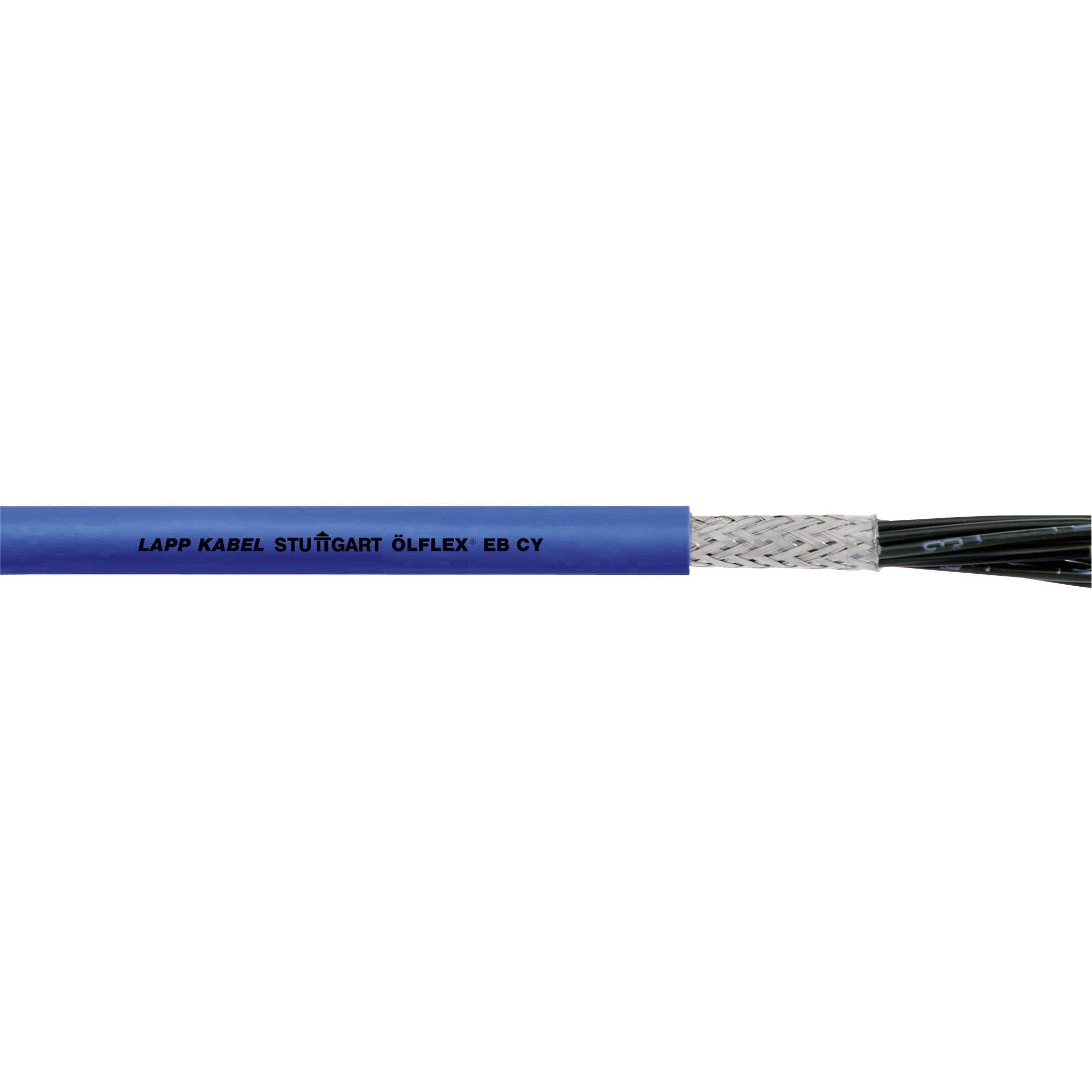

ÖLFLEX® EB CY 7X0.75

Temperature range

When fixed -40 to +70 ºC°C

Test voltage

2000V
