Core layout

Finely stranded according to VDE 0295, Class 5

Nominal voltage (details)

300/500V

RoHS-compliant

Yes

Sold per metre

Yes

Package

No

No. of leads

3G

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+90°C

Min. temperature range (fixed installation)

-20°C

Max. temperature range (fixed installation)

+90°C

Nominal voltage U0

300V

Max. length sold by the metre

300m

Outside Ø

6.50mm

Nominal voltage

500V

Manufacturer part #

26002-1

Cable features

Flame-retardant,Heat-resistant

Insulation Materials

PVC

Halogen-free

No

Cross section (each core)

0.75mm²

Factory colour

Black

Cross section

3 x 0.75 mmmm²

Content

Sold per metre

Cable Types

HEAT 105 MC

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

15

Type

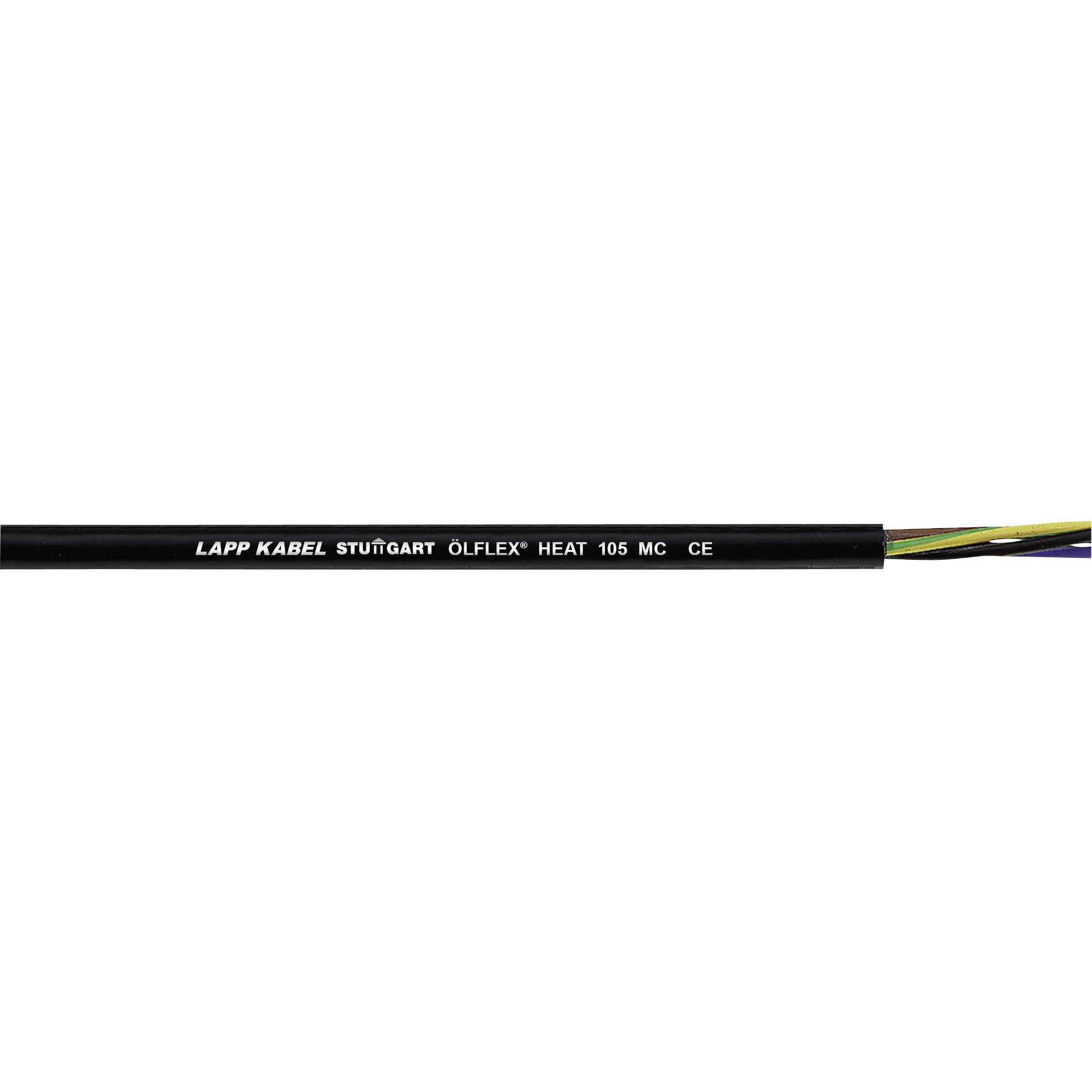

SINGLE WIRE OILFLEX® HEAT 105 MC 3G0,75

Temperature range

fixed: -20 - +90 °C, shorttermed: +105°C

Bend radius

for flexible Use: 15 x outer Ø, fixed: 4 x outer Ø

Test voltage

2500V
