Cable Types

LiYY

No. of leads

2x

Cross section (each core)

0.50mm²

Cross section

2 x 0.5 mmmm²

Cable features

Flame-retardant

Outside Ø

5.30mm

Factory colour

Grey

Content

Sold per metre

Nominal voltage (details)

300V

AWG max.

20

Bend radius (no. of ODs for fixed installation)

6

Bend radius (no. of ODs for flexible installation)

15

Package

No

Sold per metre

Yes

Halogen-free

No

Manufacturer part #

22632-1

Insulation Materials

PVC

Wire ID code

47100

Core layout

7-strand

RoHS-compliant

Yes

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Certification marks

VDE 0815

Max. length sold by the metre

305m

Peak operating voltage

250 V (not for heavy current applications)

Type

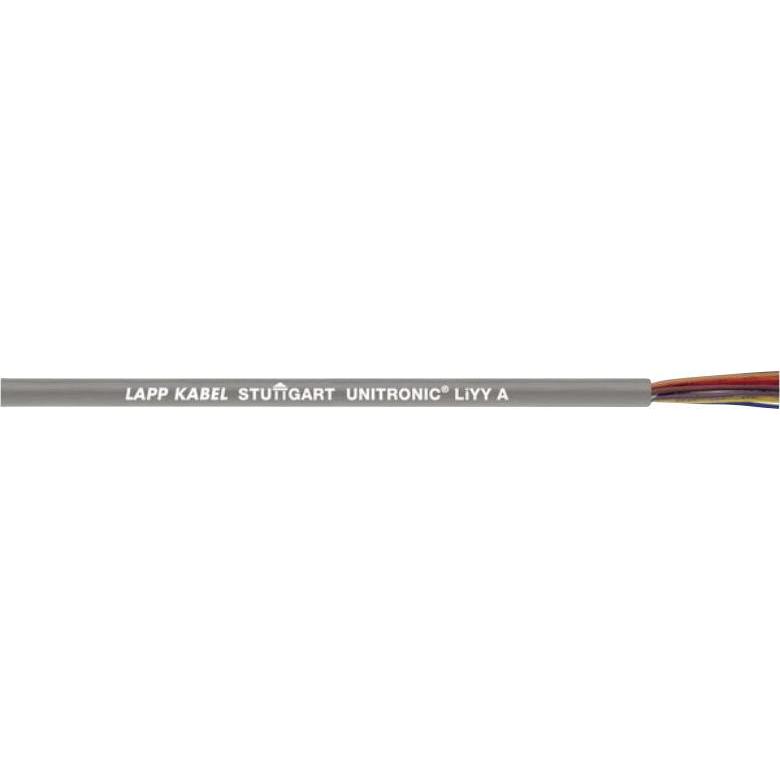

UNITRONIC® LIYY UL/CSA DIN 2xAWG20/7

Shielded

No

Temperature range

When fixed: -30 - +80°C

Bend radius

For flexible use: 15 x external dia.
