Cable Types

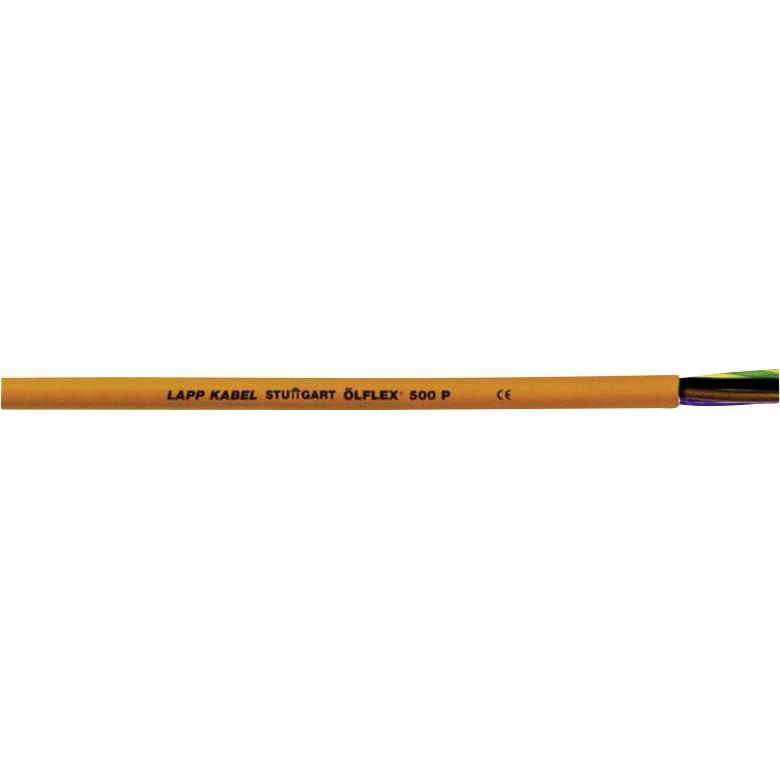

ÖLFLEX® 500 P

No. of leads

3G

Cross section (each core)

2.50mm²

Cross section

3 x 2.5mm²

Cable features

Halogen-free,Cold-resistant,Oil-resistant,PUR coating,highly flexible

Factory colour

Orange

Outside Ø

10.90mm

Content

Sold per metre

Nominal voltage

500V

Nominal voltage U0

300V

Bend radius (no. of ODs for fixed installation)

4

Bend radius (no. of ODs for flexible installation)

10

Core layout

Extra-finely stranded according to VDE 0295 class 6/IEC 228 class 66

Package

No

Sold per metre

Yes

Halogen-free

Yes

Manufacturer part #

12365-1

Insulation Materials

Polyurethane

RoHS-compliant

Yes

Min. temperature range (flexible installation)

-40°C

Max. temperature range (flexible installation)

+80°C

Min. temperature range (fixed installation)

-50°C

Max. temperature range (fixed installation)

+80°C

Certification marks

According to VDE 0250

Wire ID code

to VDE 0293 or VDE 0293-308

Material (details)

Outer cover/jacket: Polyurethane

Max. length sold by the metre

300m

Nominal voltage (details)

300/500V

Type

ÖLFLEX® 500 P

Shielded

No

Temperature range

-40 - +80 °C, applications with movement: · Firmly laid: -50 - +80°C

Bend radius

Minimum bend radius for flexible application: 15 x external dia. · when fixed: 4 x external dia.

Test voltage

3000V
