Cable Types

LiYCY

No. of leads

2x

Cross section (each core)

1.50mm²

Cross section

2 x 1.5mm²

Cable features

Shielded,Flame-retardant

Outside Ø

7.50mm

Factory colour

Grey

Content

Sold per metre

Nominal voltage (details)

250 V (not for heavy current applications)

Bend radius (no. of ODs for fixed installation)

6

Bend radius (no. of ODs for flexible installation)

15

Package

No

Sold per metre

Yes

Halogen-free

No

Manufacturer part #

0034902-1

Insulation Materials

PVC

Wire ID code

DIN 47100

Core layout

Braid, fine 0.34 mm² 7-strand

RoHS-compliant

Yes

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+70°C

Min. temperature range (fixed installation)

-40°C

Max. temperature range (fixed installation)

+80°C

Certification marks

According to VDE 0812

Max. length sold by the metre

300m

Type

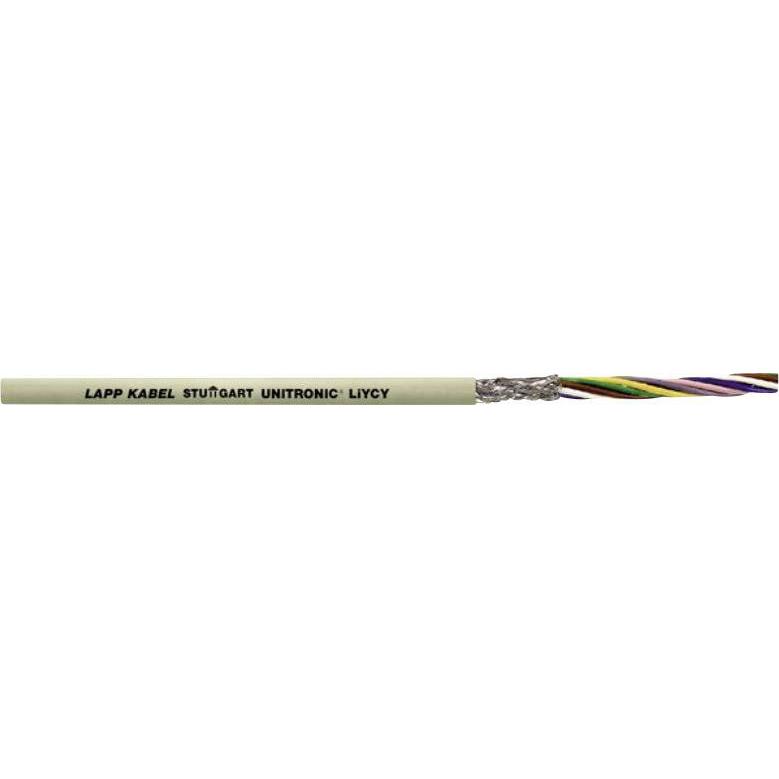

UNITRONIC® LIYCY 2X1.5

Shielded

Yes

Temperature range

When laid fixed : -30 - +80°C

Bend radius

For flexible use: 15 x external dia. when laid fixed: 6 x external dia.
