Mount

Surface Mount

Mounting Type

Surface Mount

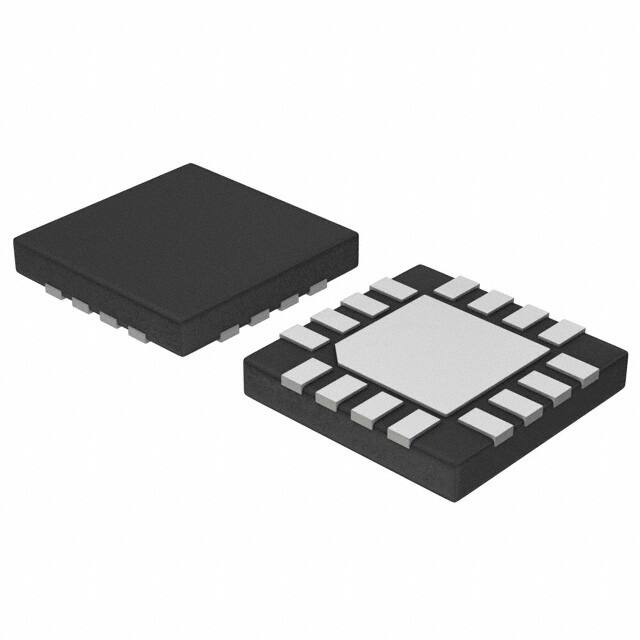

Package / Case

16-UFQFN Exposed Pad

Number of Pins

16

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Published

2010

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Type

DC DC Regulator

Terminal Finish

Matte Tin (Sn)

Applications

Backlight

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Supply Voltage

3.6V

Terminal Pitch

0.5mm

Reach Compliance Code

unknown

Frequency

1.3MHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

NCP5021

Pin Count

16

Number of Outputs

1

Qualification Status

Not Qualified

Max Supply Voltage

5.5V

Min Supply Voltage

2.7V

Power Dissipation

300mW

Voltage - Output

32V

Topology

Step-Up (Boost)

Internal Switch(s)

Yes

fmax-Min

0.4 MHz

Number of Segments

8

Voltage - Supply (Min)

2.7V

Multiplexed Display Capability

NO

Data Input Mode

SERIAL

Length

3mm

Height Seated (Max)

0.55mm

Width

3mm

RoHS Status

RoHS Compliant
