Factory Lead Time

23 Weeks

Mounting Type

Free Hanging (In-Line)

Dielectric Material

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Option

LOCKING

Shell Material, Finish

Steel

Contact Materials

Brass

Insulation Materials

POLYAMIDE

Voltage Rated

250V

Operating Temperature

-55°C~105°C

Packaging

Tray

Published

2012

JESD-609 Code

e4

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder Cup

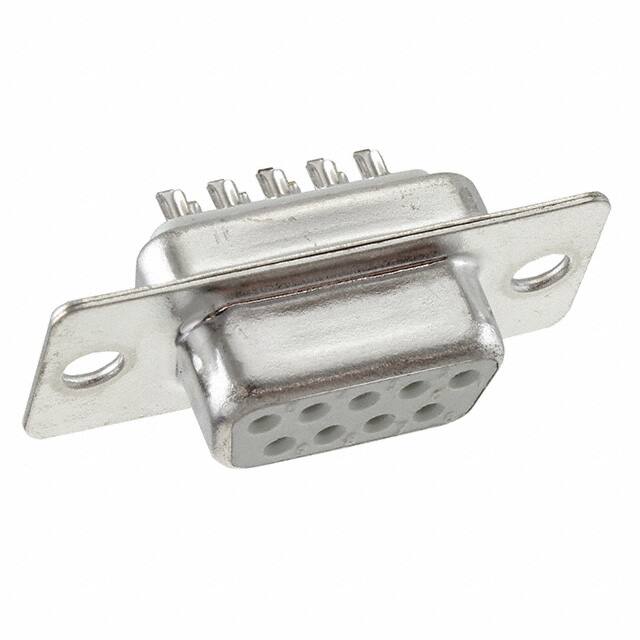

Connector Type

Receptacle, Female Sockets

Number of Positions

9

Color

White

Number of Rows

2

Additional Feature

QUALITY CLASS III

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Contact Type

Signal

Mixed Contacts

NO

Option

GENERAL PURPOSE

Current Rating (Amps)

3A

Military Standard

NO

Shell Finish

TIN

Reference Standard

UL

Contact Finish

Gold

Reliability

COMMERCIAL

Number of Contacts

9

UL Flammability Code

UL94 V-0

Empty Shell

NO

Insulation Resistance

1000000000Ohm

Flange Feature

Housing/Shell (Unthreaded)

Dielectric Withstanding Voltage

1400VAC V

Connector Style

D-Sub

Shell Size, Connector Layout

1 DE E

Contact Finish Thickness

Flash

Length - Termination

0.13 inch

RoHS Status

ROHS3 Compliant
