Mount

Surface Mount

Mounting Type

Surface Mount

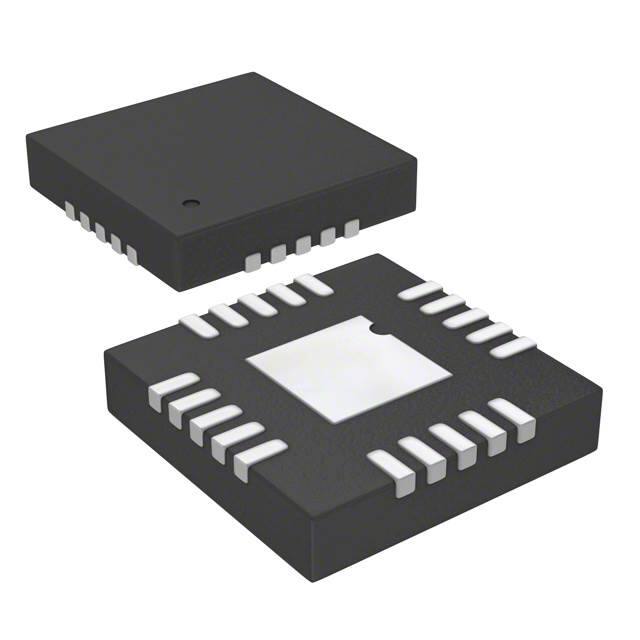

Package / Case

20-VFQFN Exposed Pad

Number of Pins

20

SwitchingFrequency

1.8MHz

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

20

ECCN Code

EAR99

Type

DC DC Regulator

Terminal Finish

Matte Tin (Sn) - annealed

Applications

Camera Flash

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

3.6V

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

STCF02

Pin Count

20

Number of Outputs

1

Power Supplies

3.6V

Current - Output

600mA

Quiescent Current

3μA

Voltage - Output

2.5V~5.1V

Topology

Step-Down (Buck), Step-Up (Boost)

Output Current per Channel

600mA

Internal Switch(s)

Yes

Number of Segments

1

Voltage - Supply (Max)

5.5V

Voltage - Supply (Min)

2.7V

Multiplexed Display Capability

NO

Length

4mm

Width

4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
