Mount

Panel, Screw

Number of Pins

4

Voltage Rating (AC)

660 V

Output Device

SCR

Output Voltage (Max)

660(V)

Rad Hardened

No

Mounting

Screw

Input Polarity

DC

Manufacturer Part Number

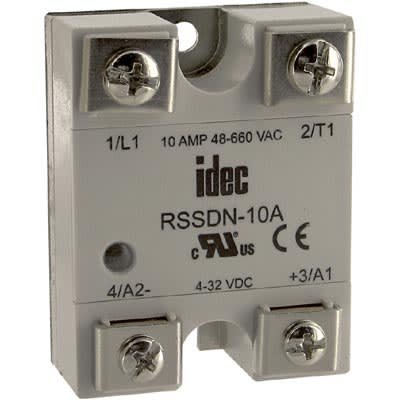

RSSDN-10A

Manufacturer

IDEC

Switching Mode

Zero Crossing

Maximum Operating Temperature

+ 80 C

Minimum Operating Temperature

- 20 C

Factory Pack QuantityFactory Pack Quantity

1

Mounting Styles

Panel Mount

Control Voltage Range

3 VDC to 32 VDC

Brand

IDEC

Input to Output Isolation Method

Optical

Series

RSS

Termination

Screw

Type

SSR

Subcategory

Relays

Current Rating

10 A

Pin Count

4

Termination Style

Screw

Approval Agency

CE, cULus

Output Voltage

48-660 VAC

Output Type

AC

Max Output Current

10 A

Operating Supply Voltage

660 V

Circuit

1NO

Number of Circuits

1

Max Voltage Rating (AC)

660 V

Current - Output

10000(mA)

Throw Configuration

SPST

Max Voltage Rating (DC)

32 V

Input Type

DC

Max Output Voltage

660 V

Product Type

Panel Mount

Nominal Output Voltage

48 VAC, 120 VAC, 208 VAC, 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC, 575 VAC, 600 VAC

Input Current

10 mA

Load Current

10 A

Isolation Voltage

4000(V)

Max Supply Voltage (AC)

660 V

Input Signal

4-32 VDC

Contact Configuration

SPST-NO

Min Supply Voltage (AC)

48 V

Product

Solid State Relays

Input Voltage

32(V)

Product Category

Solid State Relays - Industrial Mount

IP Rating

-

Height

67.3 mm

Length

48.3 mm

Width

24.1 mm

RoHS Status

RoHS Compliant
