Package / Case

DIP

Mount

Through Hole

Mounting Type

PCB Mount

Surface Mount

NO

Mounting Feature

THROUGH HOLE-STRAIGHT MOUNT

Number of Pins

8

Weight

13 g

CoilResistance

47 Ω

Coil Voltage AC

5 V

Contact Materials

Gold, Silver, Tin

Voltage Rating (AC)

400 V

Relay Construction

Non-Latching

Pick-up Voltage (Max)

3.5VDC

Product Depth (mm)

12.8(mm)

LED Indicator

No

Operating Temp Range

-40C to 75C

Mounting Styles

Through Hole

Voltage Rating (VDC)

300(V)

Dropout Volt

0.5VDC

Dropout Volt (Min)

0.5VDC

Seal

Sealed

Maximum Power Rating

120W/1.25KVA

Rad Hardened

No

Unit Weight

0.423288 oz

Factory Pack QuantityFactory Pack Quantity

20

Manufacturer

Fujitsu

Brand

Fujitsu

RoHS

Details

Package Description

ROHS COMPLIANT

Operating Temperature-Min

-40 °C

Operating Temperature-Max

75 °C

Rohs Code

Yes

Manufacturer Part Number

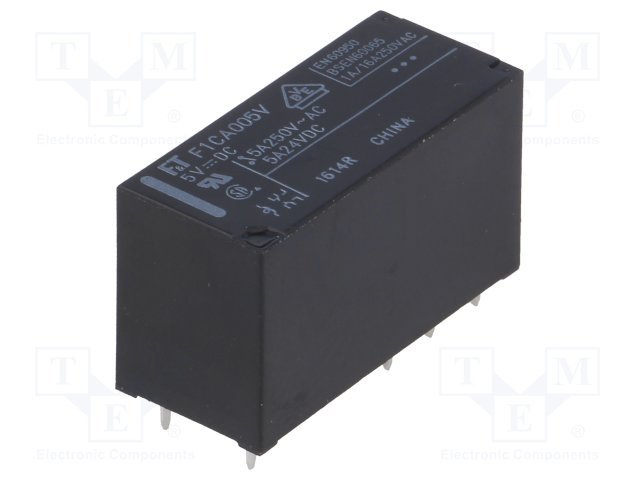

FTR-F1CA005V

Part Life Cycle Code

Active

Samacsys Description

General Purpose Relays Low Profile 5VDC

Ihs Manufacturer

FUJITSU LTD

ElectricalLife

100000 Cycle(s)

Risk Rank

1.01

Series

FTR-F1

Packaging

Tube

Pbfree Code

Yes

Termination

PC Pin

ECCN Code

EAR99

Type

Power Relay

Max Operating Temperature

75 °C

Min Operating Temperature

-40 °C

HTS Code

8536.41.00.20

Subcategory

Relays

Depth

12.8 mm

Reach Compliance Code

compliant

Pin Count

8

Reference Standard

CQC; CSA; DEMKO; FIMKO; IMQ; NEMKO; SEMKO; SEV; UL; VDE

Termination Style

PC Pin

Body Length or Diameter

29 mm

Body Breadth

12.8 mm

Physical Dimension

29mm x 12.8mm x 16.5mm

Contact Resistance

100 mΩ

Contact Current(DC)-Max

5 A

Contact Voltage(DC)-Max

24 V

Max Voltage Rating (AC)

400 V

Termination Type

SOLDER

Max Current Rating

7 A

Number of Poles

2

Throw Configuration

DPDT

Max Voltage Rating (DC)

300 V

Contact Current Rating

7 A

Contact Termination

Solder Pin

Contact Form

2 Form C

Relay Type

POWER/SIGNAL RELAY

Terminal Type

PCB Pin

Product Type

General Purpose Relays

Contact Current(AC)-Max

5 A

Contact (AC) Max Rating R Load

Operate Time

15 ms

Coil Voltage

5V dc

Coil Type

Non-Latching

Switching Voltage

400 VAC, 300 VDC

Coil Current

106.38 mA

Release Time

5 ms

Contact (DC) Max Rating R Load

Power Consumption

530 mW

Coil Power

530mW

Contact Voltage(AC)-Max

250 V

Contact/Output Supply Type

AC/DC

Relay Action

MOMENTARY

Coil Voltage (DC)

5 V

Coil/Input Supply Type

DC

Relay Function

DPDT

Contact Arrangement

DPDT

Coil Voltage(DC)-Max

5 V

Contact Configuration

DPST

Coil Current(DC)-Max

0.106 A

Coil Operate Voltage(DC)

3.5 V

Coil Release Voltage(DC)

0.5 V

Product

Power Relays

Coil Suppression Diode

No

Product Category

General Purpose Relays

Coil Termination

Solder Pin

Voltage Rating (VAC)

400(V)

Product Length (mm)

29(mm)

Length

29 mm

Height

16.5mm

Width

12.8 mm

Body Height

16.5 mm

Product Height (mm)

16.5(mm)

RoHS Status

RoHS Compliant
