Contact Plating

Gold

Mount

Chassis Mount, Panel

Surface Mount

NO

Mounting Feature

PANEL MOUNT

Material

PET

Housing Material

Polyethylene

Actuator Material

Polybutylene

Terminal Material

BRASS

Contact Materials

Copper, Gold, Silver

ElectricalLife

6 kcycles

Voltage Rating (AC)

125 V

Operating Temperature Max Deg. C

120C

Maximum Movement Differential

0.1

Body Orientation

Straight

Maximum Pre-Travel

1

Product Depth (mm)

6.45(mm)

Operating Temp Range

-40C to 120C

Mounting Styles

Screw

Actuator Style

Button

Minimum Over-Travel

0.6

Switch Function Configuration

N.O./N.C.

Operating Temperature Min Deg. C

-40C

AC Voltage Rating (Max)

250

Pole Throw Configuration

SPDT

DC Voltage Rating (Max)

80@EN

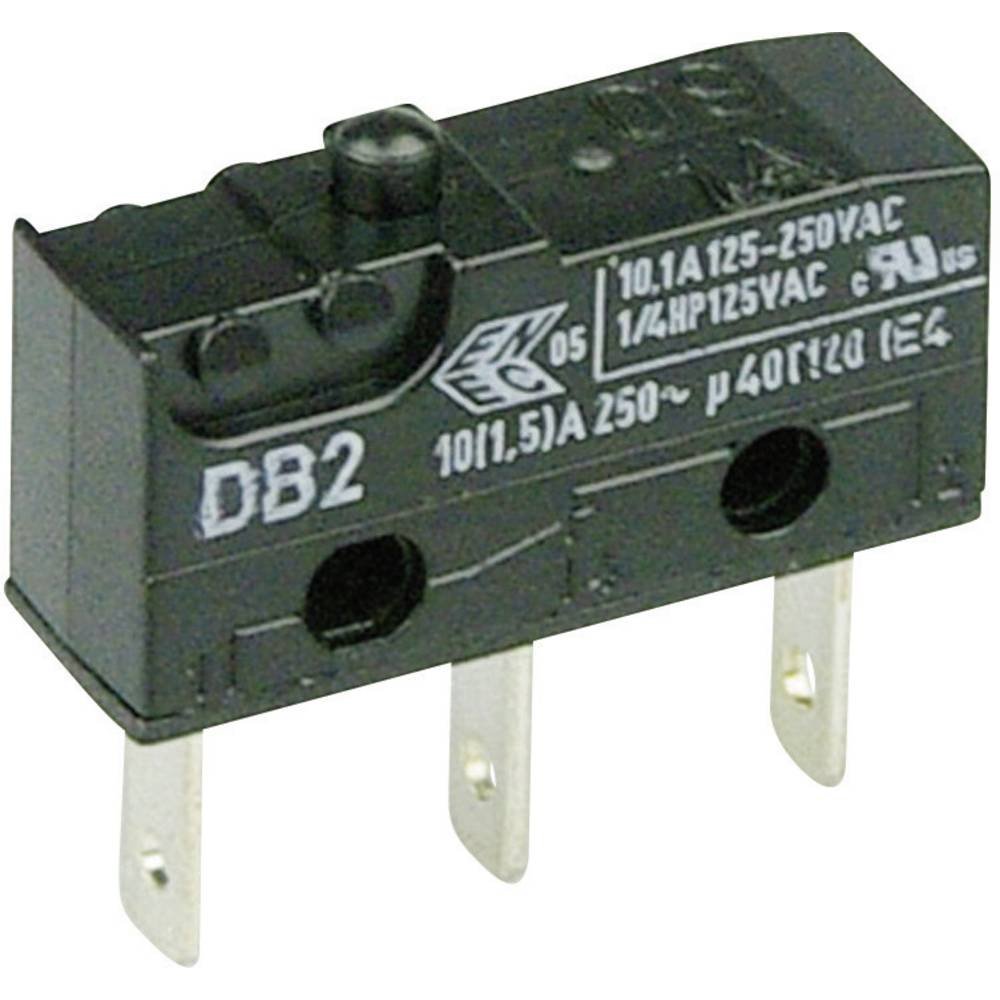

Manufacturer Part Number

DB2C-B1AA

Manufacturer

The Cherry Corporation

Part Life Cycle Code

Active

Ihs Manufacturer

THE CHERRY CORP

Risk Rank

1.6

Package Description

ROHS COMPLIANT

Operating Temperature-Min

-40 °C

Operating Temperature-Max

120 °C

Rohs Code

Yes

Manufacturer Series

DB

JESD-609 Code

e4

Pbfree Code

Yes

Termination

Quick Connect

ECCN Code

EAR99

Number of Positions

2

Terminal Finish

Silver (Ag)

Max Operating Temperature

120 °C

Min Operating Temperature

-40 °C

Color

Black

Additional Feature

ELECTRICAL LIFE AND ELECTRICAL RATING FOR EN ALSO AVAILABLE

HTS Code

8536.50.70.00

Depth

6.45 mm

Reach Compliance Code

unknown

Current Rating

10 A

Body Length or Diameter

20 mm

Body Breadth

6.45 mm

Actuator Type

Spherical Head Button

Switch Function

On-Mom

Contact Current(DC)-Max

0.1 A

Sealing

IP50

Contact Voltage(DC)-Max

80 V

Max Voltage Rating (AC)

250 V

Termination Type

QUICK CONNECT

Max Current Rating

10.1 A

Number of Poles

1

Throw Configuration

SPDT

Mechanical Life

10 Mcycles

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Current Rating

10.1 A

Operating Force

2.45 N

Terminal Type

0.110 x 0.020 (2.8 x 0.5) QC Straight

Contact Current(AC)-Max

10.1 A

Contact (AC) Max Rating R Load

Contact (DC) Max Rating R Load

Overtravel

635 µm

Contact Voltage(AC)-Max

250 V

Differential Travel

101.6 µm

Pretravel

1.016 mm

Operating Position

8.382 mm

Current Rating (Max)

10.1(A)

Actuator Travel

1.6 mm

Switch Action

MOMENTARY

Pre-Travel-Max

1 mm

Operating Force-Max

2.5 N

Contact Configuration

SPDT (T120)

Terminal Length

0.287 inch

IP Rating

IP50

Product Length (mm)

20(mm)

Length

20 mm

Width

20 mm

Body Height

9.65 mm

Actuator Length

0.087 inch

Product Height (mm)

18.95(mm)

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Lead Free

Lead Free

Ratings

IP50
