Mount

Panel

Mounting Type

Panel Mount

Surface Mount

NO

Mounting Feature

PANEL MOUNT

Housing Material

Stainless Steel

Actuator Material

Brass

Center Contact Plating

SILVER

Center Contact Material

SILVER

End Contact Material

SILVER

End Contact Plating

SILVER

Contact Materials

Silver

ElectricalLife

50 kcycles

Voltage Rating (AC)

125 V

Voltage Rating (DC)

30 V

Harmonized Code

ECCN

EAR99

Itar Registered

No

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

RoHS

Compliant

Bushing Size

1/4-40

Factory Pack QuantityFactory Pack Quantity

50

Mounting Styles

Panel Mount

Actuator Style

Bat

Manufacturer

Apem

Voltage Rating DC

30 VDC

Illuminated

Non-Illuminated

Terminal Seal

Unsealed

Brand

Apem

Actuator

Bat

Insulator Material

DIALLYL PHTHALATE

Operating Temperature-Min

-40 °C

Operating Temperature-Max

85 °C

Rohs Code

Yes

Manufacturer Part Number

5642A

Part Life Cycle Code

Active

Ihs Manufacturer

APEM COMPONENTS INC

Risk Rank

2.16

Dielectric Withstand Volts

2100VAC V

Manufacturer Series

5000

Packaging

Bulk

Termination

Solder

ECCN Code

EAR99

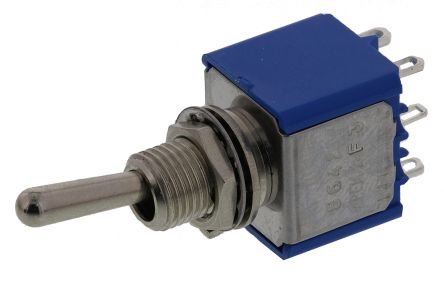

Type

Miniature Toggle Switch

Max Operating Temperature

85 °C

Min Operating Temperature

-40 °C

HTS Code

8536.50.90.40

Subcategory

Switches

Reach Compliance Code

compliant

Current Rating

4 A

Termination Style

Solder Lug

Body Length or Diameter

13.1826 mm

Body Breadth

11.9888 mm

Actuator Type

TOGGLE

Switch Function

On-Mom

Contact Resistance

10 mΩ

Insulation Resistance

1000 MOhms

Contact Current(DC)-Max

4 A

Contact Voltage(DC)-Max

30 V

Termination Type

SOLDER LUG

Throw Configuration

DPDT

Illumination

Non Illuminated

Mechanical Life

100000Operations

Switch Type

TOGGLE SWITCH

Contact Current Rating

4 A

Contact Form

DPDT

Illumination Type

Illuminated, Non-Illuminated

Terminal Type

Solder

Product Type

Toggle Switches

Operating Temperature Range

-40 → +85°C

Illumination Color

-

Contact (DC) Max Rating R Load

Contact Function

ON-(OFF)

Switch Action

MOMENTARY

Bushing Length

0.314 inch

Actuator Angle

24 deg

Contact Configuration

DPDT

Actuator Finish

NICKEL

Lamp Type

-

Mounting Angle

Vertical

Terminal Length

0.145 inch

Product Category

Toggle Switches

Height

12 mm

Width

12 mm

Body Height

11.9888 mm

Actuator Length

10.5 mm

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Flammability Rating

UL 94 V-0
