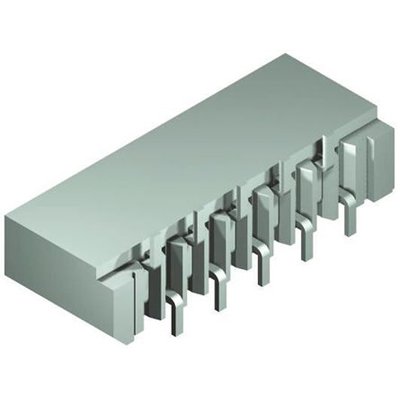

Lifecycle Status

Production (Last Updated: 4 months ago)

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

BOARD

Housing Material

Thermoplastic

Mounting Option 1

LOCKING

Contact Materials

Bronze

Country of Origin

MY

Manufacturer Lifecycle Status

ACTIVE (Last Updated: 4 months ago)

Voltage, Rating

125 V

Cable Type

Flat Flex

Voltage Rating Max

125V

Body Orientation

Straight

Number of Contact Rows

1

Product Depth (mm)

4.5(mm)

Contact Resistance Max

30(mohm)

Operating Temp Range

-20C to 80C

Termination Method

Solder

Mounting Styles

Surface Mount

Pitch (mm)

1(mm)

RoHS

Compliant

Pitch Spacing

1mm

Contact Position

-

Maximum Operating Temperature

+ 80 C

Unit Weight

0.015722 oz

Minimum Operating Temperature

- 20 C

Factory Pack QuantityFactory Pack Quantity

1000

Actuation Type

Non ZIF

Part # Aliases

0528081771 528081771

Manufacturer

Molex

Brand

Molex

Tradename

Easy-On

Risk Rank

1.57

Ihs Manufacturer

MOLEX LLC

Part Life Cycle Code

Active

Number of Rows Loaded

1

Manufacturer Part Number

52808-1771

Rohs Code

Yes

Operating Temperature-Max

80 °C

Operating Temperature-Min

-20 °C

Insulator Material

POLYPHENYLENE SULPHIDE

Body Length

0.787 inch

Contact Finish Mating

NOT SPECIFIED

Package Description

LEAD FREE

Packaging

Tape & Reel (TR)

Series

52808

Pbfree Code

Yes

Termination

Solder

ECCN Code

EAR99

Connector Type

FFC/FPC CONNECTOR

Type

FFC/FPC Connector

Number of Positions

17

Max Operating Temperature

80 °C

Min Operating Temperature

-20 °C

Number of Rows

1

Gender

Female

Additional Feature

ROSH AND ELV COMPLIANT

HTS Code

8536.69.40.51

Subcategory

FFC & FPC Connectors

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Mixed Contacts

NO

Option

GENERAL PURPOSE

Pitch

1 mm

Total Number of Contacts

17

Orientation

Vertical

Terminal Pitch

1 mm

Depth

3 mm

Reach Compliance Code

compliant

Current Rating

500 mA

Reference Standard

UL

Termination Style

SMD/SMT

Reliability

COMMERCIAL

Number Of PCB Rows

2

Number of Contacts

17

PCB Contact Pattern

STAGGERED

Body Breadth

0.118 inch

Actuator Type

Non-ZIF

UL Flammability Code

94V-0

Housing Color

Natural

Body Depth

0.201 inch

Rated Current (Signal)

0.5 A

Contact Style

BELLOWED TYPE

Contact Resistance

30 mΩ

Insulation Resistance

100000000 Ω

Mating Contact Pitch

0.039 inch

Number of Circuits

17

Termination Type

SURFACE MOUNT

Dielectric Withstanding Voltage

500VAC V

PCB Contact Row Spacing

3.556 mm

Durability

10 Cycles

Accessory Type

-

Contact Pattern

RECTANGULAR

Product Type

FFC & FPC Connectors

Current Rating (Max)

0.5/Contact(A)

Contact Location

-

Product

Board Mount

Mounting Angle

Vertical

Product Category

FFC & FPC Connectors

Product Length (mm)

20(mm)

Length

20 mm

Product Height (mm)

5.1(mm)

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant
