Package / Case

125

Mount

Panel

Mounting Type

Panel Mount

Surface Mount

NO

Mounting Feature

PANEL MOUNT

Housing Material

Stainless Steel

Number of Terminals

9

Actuator Material

Brass, Nylon, Polyamide

Center Contact Plating

SILVER

Center Contact Material

SILVER

End Contact Material

SILVER

End Contact Plating

SILVER

Contact Materials

Silver

ElectricalLife

40 kcycles

Voltage Rating (AC)

125 V

Voltage Rating (DC)

30 V

Harmonized Code

ECCN

EAR99

Itar Registered

No

Operating Temperature Max Deg. C

85C

Switch Configuration

ON ON

Body Orientation

Straight

Seal Description

NOT REQUIRED

Product Depth (mm)

16.5(mm)

Actuator Length (mm)

11.4(mm)

Contact Resistance Max

10(mohm)

Operating Temp Range

-40C to 85C

Dielectric Strength

1000VRMS

Seal Location

NOT REQUIRED

Actuator Style

Flat Lever

ActuatorColor

BRIGHT CHROME

Operating Temperature Min Deg. C

-40C

AC Voltage Rating (Max)

250

Pole Throw Configuration

3PDT

DC Voltage Rating (Max)

30

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Bushing Size

1/4-40

Factory Pack QuantityFactory Pack Quantity

25

Manufacturer

Apem

Illuminated

Non-Illuminated

Brand

Apem

RoHS

Details

Actuator

Bat

Insulator Material

DIALLYL PHTHALATE

Operating Temperature-Min

-40 °C

Operating Temperature-Max

85 °C

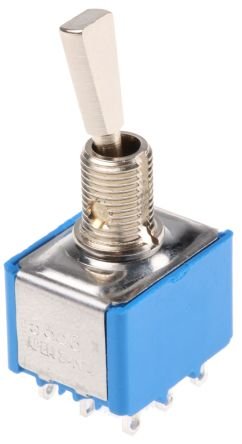

Manufacturer Part Number

5656A9

Part Life Cycle Code

Active

Ihs Manufacturer

APEM COMPONENTS INC

Risk Rank

1.97

Dielectric Withstand Volts

2100VAC V

Manufacturer Series

5000

Termination

Solder

ECCN Code

EAR99

Max Operating Temperature

85 °C

Min Operating Temperature

-40 °C

HTS Code

8536.50.90.40

Subcategory

Switches

Reach Compliance Code

compliant

Current Rating

4 A

Termination Style

Solder Lug

Body Length or Diameter

16.4846 mm

Body Breadth

13.1826 mm

Actuator Type

TOGGLE

Switch Function

On-On

Contact Resistance

10 mΩ

Insulation Resistance

1000(Mohm)

Contact Current(DC)-Max

4 A

Contact Voltage(DC)-Max

30 V

Termination Type

SOLDER LUG

Throw Configuration

3PDT

Illumination

Non Illuminated

Mechanical Life

100000

Switch Type

TOGGLE SWITCH

Contact Current Rating

4 A

Illumination Type

Illuminated, Non-Illuminated

Thread Size

1/4-40

Terminal Type

Solder

Product Type

Toggle Switches

Operating Temperature Range

-40 → +85°C

Illumination Color

-

Contact (DC) Max Rating R Load

Current Rating (Max)

4(A)

Contact Function

ON-ON

Switch Action

MOMENTARY

Bushing Length

0.314 inch

Actuator Angle

24 deg

Contact Configuration

3PDT

Actuator Finish

NICKEL

Bushing Type

THREADED

Lamp Type

-

Terminal Length

0.145 inch

Product Category

Toggle Switches

Product Length (mm)

13.2(mm)

Height

13 mm

Width

16.5 mm

Body Height

13.1064 mm

Actuator Length

11.4 mm

Product Height (mm)

35.1(mm)

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant
