Package / Case

125

Mount

Panel

Mounting Type

Panel Mount

Surface Mount

NO

Mounting Feature

PANEL MOUNT

Housing Material

N/A/Stainless Steel

Number of Terminals

3

Actuator Material

Brass

Center Contact Plating

SILVER

Center Contact Material

SILVER

End Contact Material

SILVER

End Contact Plating

SILVER

Voltage Rating (AC)

125 V

Voltage Rating (DC)

30 V

Contact Materials

Silver

ElectricalLife

50 kcycles

Operating Temperature (Max)

85 °C

Operating Temperature (Min)

-40 °C

Operating Temperature Max Deg. C

85C

Switch Configuration

Mom OFF Mom

Body Orientation

Straight

Seal Description

NOT REQUIRED

Actuator Length (mm)

10.5(mm)

Contact Resistance Max

10(mohm)

Operating Temp Range

-40C to 85C

Dielectric Strength

1000VRMS

Seal Location

NOT REQUIRED

Actuator Style

ROUND LEVER

ActuatorColor

BRIGHT CHROME

Operating Temperature Min Deg. C

-40C

AC Voltage Rating (Max)

250

Pole Throw Configuration

SPDT

DC Voltage Rating (Max)

30

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Bushing Size

1/4-40

Unit Weight

0.322180 oz

Factory Pack QuantityFactory Pack Quantity

50

Mounting Styles

Panel Mount

Manufacturer

Apem

Voltage Rating DC

30 VDC

Illuminated

Non-Illuminated

Terminal Seal

Unsealed

Brand

Apem

RoHS

Details

Actuator

Bat

Insulator Material

DIALLYL PHTHALATE

Operating Temperature-Min

-40 °C

Operating Temperature-Max

85 °C

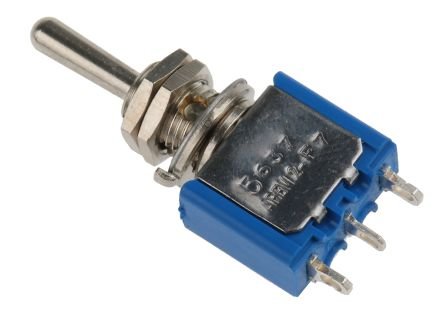

Manufacturer Part Number

5637A

Part Life Cycle Code

Active

Ihs Manufacturer

APEM COMPONENTS INC

Risk Rank

1.97

Dielectric Withstand Volts

2100VAC V

Manufacturer Series

5000

Packaging

Bulk

Termination

Solder

ECCN Code

EAR99

Type

Miniature Toggle Switch

HTS Code

8536.50.90.40

Subcategory

Switches

Current Rating (Amps)

4 A

Reach Compliance Code

compliant

Termination Style

Solder Lug

Body Length or Diameter

13.1826 mm

Body Breadth

6.985 mm

Actuator Type

TOGGLE

Switch Function

Mom-Off-Mom

Contact Resistance

10 mΩ

Insulation Resistance

1000(Mohm)

Contact Current(DC)-Max

4 A

Contact Voltage(DC)-Max

30 V

Termination Type

SOLDER LUG

Throw Configuration

SPDT

Illumination

Non Illuminated

Mechanical Life

100000

Switch Type

TOGGLE SWITCH

Contact Current Rating

4 A

Contact Form

SPDT

Illumination Type

Illuminated, Non-Illuminated

Thread Size

1/4-40

Terminal Type

Solder

Product Type

Toggle Switches

Operating Temperature Range

-40 → +85°C

Illumination Color

-

Contact (DC) Max Rating R Load

Current Rating (Max)

4(A)

Contact Function

(ON)-OFF-(ON)

Switch Action

MOMENTARY

Bushing Length

0.314 inch

Actuator Angle

24 deg

Contact Configuration

SPST

Actuator Finish

NICKEL

Bushing Type

THREADED

Lamp Type

-

Mounting Angle

Vertical

Terminal Length

0.145 inch

Product Category

Toggle Switches

Product Length (mm)

13.2(mm)

Width

7 mm

Height

12 mm

Body Height

11.9888 mm

Actuator Length

10.5 mm

Product Height (mm)

34.2(mm)

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Flammability Rating

UL 94 V-0
