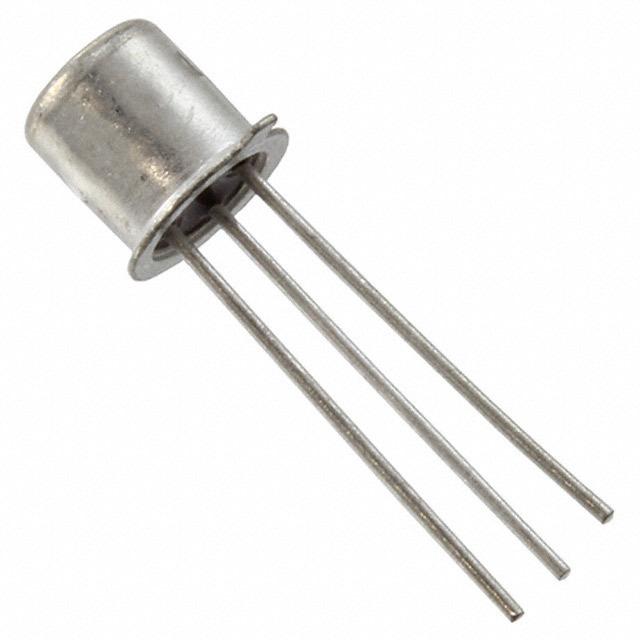

2N2222A - Central Semiconductor

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY13-2N2222A

Hersteller Teil #: 2N2222A

Produktkategorie: Transistors - Bipolar (BJT) - Single

Hersteller: Central Semiconductor

Beschreibung: TRANS NPN 40V 0.8A TO-18

Verpackung: TO-18

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

2N2222A Datenblatt

Attribute

Attribute Value

Factory Lead Time

8 Weeks

Mount

Through Hole

Package / Case

TO-18

Number of Pins

Collector-Emitter Breakdown Voltage

40V

Collector-Emitter Saturation Voltage

Frequency(Max)

300MHz

Frequency - Gain Bandwidth Product (GBP)

300MHz

Number of Elements

Power Dissipation (Max)

500mW

hFEMin

100

Packaging

Bulk

Published

2003

JESD-609 Code

Pbfree Code

Part Status

Active

Number of Terminations

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Max Operating Temperature

200°C

Min Operating Temperature

-65°C

Terminal Position

BOTTOM

Terminal Form

WIRE

Frequency

250MHz

Polarity

NPN

Element Configuration

Single

Power Dissipation

500mW

Transistor Application

SWITCHING

Collector Emitter Voltage (VCEO)

40V

Max Collector Current

800mA

Transition Frequency

300MHz

Frequency - Transition

300MHz

Collector Base Voltage (VCBO)

75V

Emitter Base Voltage (VEBO)

DC Current Gain-Min (hFE)

Max Junction Temperature (Tj)

200°C

Turn Off Time-Max (toff)

285ns

Height

5.33mm

Radiation Hardening

RoHS Status

RoHS Compliant

Lead Free

Telefon	Teilenummer	Paket	Beschreibung

2N2222A Preis
2N2222A Verteilers
2N2222A Hersteller
2N2222A Technische Daten
2N2222A PDF
2N2222A Datenblätter
2N2222A Bild
2N2222A Foto
2N2222A Teil
2N2222A Lagerbestand
2N2222A Inventar
2N2222A Angebotsanfrage
Kaufen 2N2222A
2N2222A Anfrage
2N2222A Onlinebestellung

Suchen Sie nach anderen Teilen wie 2n222

What is the difference between 2N2222 and 2N2222A?

Both transistors are from the same family but the 2N2222A has higher Maximum absolute ratings than 2N2222. The Collector to Base, Emitter to Base, and Collector to Emitter voltage ratings of 2N2222 and 2N2222A are 60V, 30V, 5V, and 75V, 40V, 6V respectively.

How does a 2N2222A transistor work?

2N2222A is a NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin.

Which transistor can be used in place of 2N2222A?

The 2N2907 is an equally popular PNP transistor complementary to the 2N2222. The 2N3904 is an NPN transistor that can only switch one-third the current of the 2N2222 but has otherwise similar characteristics.
