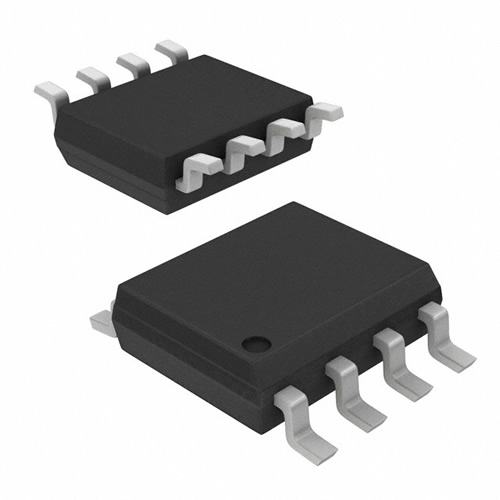

Package / Case

D

Surface Mount

YES

Number of Pins

8

Frequency - Gain Bandwidth Product (GBP)

1MHz

Operating Temperature (Max)

70°C

Operating Temperature (Min)

0°C

Current - Supply (Nom)

500μA

Number of Elements

2

Packaging

Rail/Tube

JESD-609 Code

e4

Pbfree Code

yes

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Voltage - Supply

15V

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

2

Temperature Grade

COMMERCIAL

Current - Output

40mA

Current - Supply

434μA

Slew Rate

2.9 V/μs

Amplifier Type

OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio

70 dB

Current - Input Bias

200pA

Output Current per Channel

40mA

Input Offset Voltage (Vos)

570μV

Bandwidth

1.1MHz

Neg Supply Voltage-Nom (Vsup)

-5V

Unity Gain BW-Nom

1000 kHz

Voltage Gain

81.58dB

Average Bias Current-Max (IIB)

0.0004μA

Low-Offset

NO

Frequency Compensation

YES

Max Dual Supply Voltage

15V

Low-Bias

YES

Micropower

YES

Min Dual Supply Voltage

5V

Nominal Gain Bandwidth Product

1.1MHz

Max I/O Voltage

1.5mV

Length

4.9mm

Height Seated (Max)

1.75mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Contains Lead
