Mount

Surface Mount

Package / Case

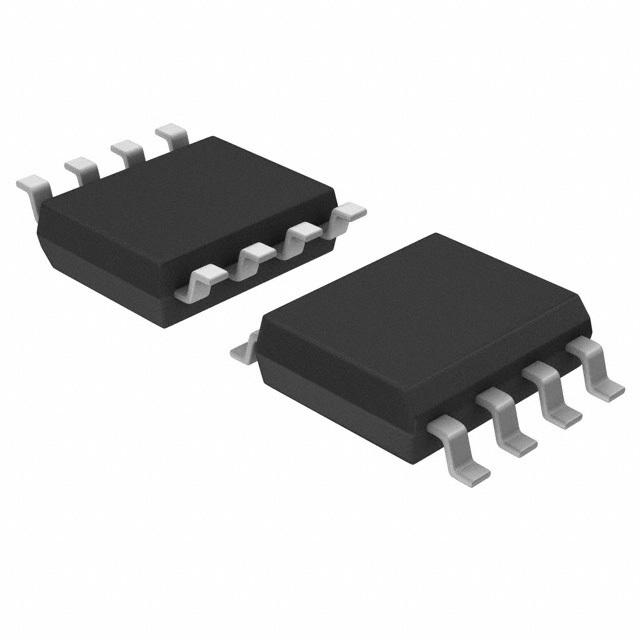

SOIC

Frequency(Max)

160MHz

Published

1999

JESD-609 Code

e0

Pbfree Code

no

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

Max Operating Temperature

70°C

Min Operating Temperature

0°C

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Supply Voltage

3.3V

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

8

JESD-30 Code

R-PDSO-G8

Qualification Status

Not Qualified

Power Supplies

3.3/5V

Temperature Grade

COMMERCIAL

Number of Circuits

1

Family

551

Output Characteristics

3-STATE

Input

CMOS

Logic IC Type

LOW SKEW CLOCK DRIVER

Max I(ol)

0.035 A

Prop. Delay@Nom-Sup

8 ns

Propagation Delay (tpd)

8 ns

Same Edge Skew-Max (tskwd)

0.25 ns

Number of True Outputs

4

Voltage - Supply (Max)

5.5V

Voltage - Supply (Min)

3V

Length

4.9mm

Width

3.9mm

RoHS Status

Non-RoHS Compliant
