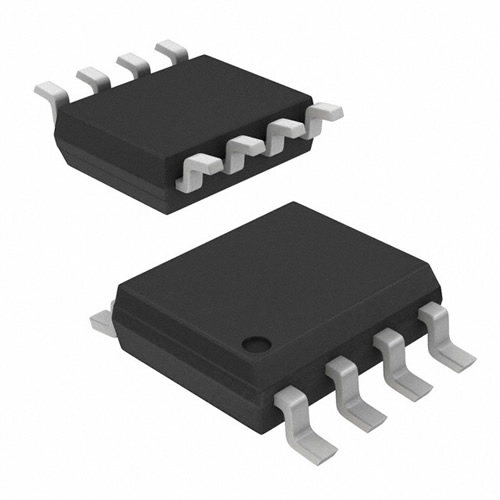

Package / Case

D

Surface Mount

YES

Number of Pins

8

Weight

75.891673mg

Operating Temperature (Max)

85°C

Operating Temperature (Min)

-40°C

Current - Supply (Nom)

13mA

Frequency - Gain Bandwidth Product (GBP)

210MHz

Power Dissipation (Max)

1.1W

JESD-609 Code

e4

Pbfree Code

yes

Moisture Sensitivity Level (MSL)

2 (1 Year)

Number of Terminations

8

ECCN Code

EAR99

Voltage - Supply

15V

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Number of Channels

1

Current - Supply

11.5mA

Slew Rate

1000 V/μs

Amplifier Type

OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio

86 dB

Current - Input Bias

100pA

Output Current per Channel

98mA

Input Offset Voltage (Vos)

260μV

Bandwidth

210MHz

Neg Supply Voltage-Nom (Vsup)

-15V

Unity Gain BW-Nom

210000 kHz

Voltage Gain

80dB

Average Bias Current-Max (IIB)

0.002μA

Power Supply Rejection Ratio (PSRR)

85dB

Low-Offset

NO

Frequency Compensation

YES

Max Dual Supply Voltage

15V

Low-Bias

YES

Micropower

NO

-3db Bandwidth

325MHz

Min Dual Supply Voltage

5V

Programmable Power

NO

Max I/O Voltage

500μV

Voltage - Supply (Max)

30V

Voltage - Supply (Min)

10V

Length

4.9mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Contains Lead
