Factory Lead Time

10 Weeks

Mount

Surface Mount

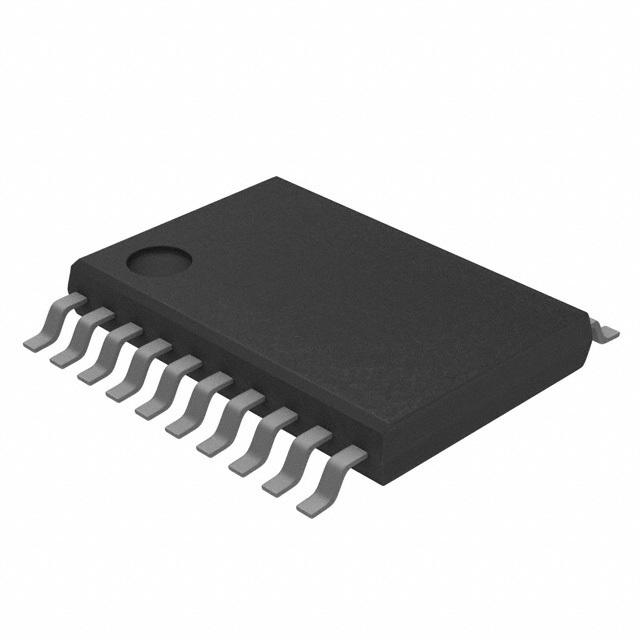

Package / Case

TSSOP

Number of Pins

20

Frequency(Max)

250MHz

Published

2004

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Additional Feature

ALSO OPERATES AT 3.3 V SUPPLY

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

2.5V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

20

Number of Outputs

1

Power Supplies

2.5/3.3V

Temperature Grade

INDUSTRIAL

Number of Circuits

1

Max Supply Voltage

3.465V

Min Supply Voltage

2.375V

Family

83056

Output Characteristics

3-STATE

Input

LVTTL

Output Polarity

TRUE

Logic IC Type

MULTIPLEXER

Max I(ol)

0.024 A

Prop. Delay@Nom-Sup

4.5 ns

Propagation Delay (tpd)

4.5 ns

Length

6.5mm

Width

4.4mm

Thickness

1mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
